Jetcruzer 450 19?? (TC A49NM) = No data.

  AASI 500 [N200JC] (AASI)

Jetcruzer 500 1994 - 6pClwM rg canard; 1570hp P&W PT6A-66A turboprop with 7'0" 5-blade pusher prop; span: 42'2" length: 30'2" load: 1850# v: 345/325/x range: 1277 ceiling: 30,000' (projected figures). Pressurized cabin. The world's only FAA "Spin Resistant" certification.

  AASI 1250 (AASI)

Stratocruzer 1250 200? - Business fanjet. 13pClwM rg canard; two 2300# Williams Rolls FJ-44-2 fanjets; v: x/500/x range: 3700 ceiling: 41,000' (projected figures). Pressurized cabin; "world's longest-range aircraft in its class." In development since 1994.

Midwing 1931 = 1pOmwM; 28hp Lawrance. POP: 1 [820Y]. This is typical of some entries herein where a judgment call was made as to the original make of aircraft. In this case, a scarcity of documentation leads one to believe it might be a plan- or kit-built Church Mid-Wing renamed by its builder.

  Abrams P-1 [X19897] (K O Eckland coll)
  Abrams P-1 Rated its own "Wings" trading card

P-1 Explorer 1937 = 2pClwM; 330hp Wright R-975 pusher; span: 36'0" length: 26'6" load: 1410# v: 185/165/66 range: 1400; ff: 11/x/37. Talbert Abrams, Kenneth Ronan; constructed by Ronan & Kunzl of Marshall MI. Created as a photo-survey plane with a service ceiling of 21,000'. POP: 1 [X19897]. Repowered with 450hp supercharged Wright in 1938; v: 200/185/66. Historian Vincent J Berinati learned of a Detroit man, George Tabraham (an unusual name), in the '30s who owned airplanes and was involved to some extent in aviation, and wonders if he might have become the also unusually-named Talbert Abrams?

AE-5 1929 = 2pOhwM; 90hp LeRhône rotary; span: 38'0" length: 29'0". Joaquin S Abreu. Steel-tube fuselage, wood-framed parasol wing. The engine and belly fuel pod was a detachable unit that could be released from the cockpit in case of fire or a dire emergency, and the ship would become a glider. In its first test, this was demonstrated at Alameda CA. From 5,500' the motor and tank unit was jettisoned, falling into sand dunes by the bay, and the ship glided for about 15 minutes before heading for the runway. There a group of people running toward the oncoming ship forced pilot Reed Vowles to swerve the plane and nose it into soft ground, sustaining minor damage. POP: 1 [592].

  Ace K-1 (1919 Flying)

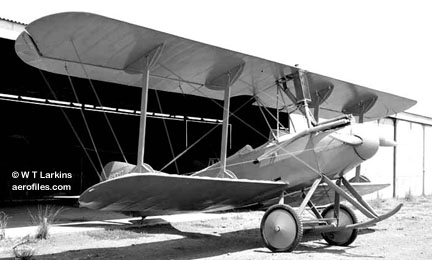

  Ace K-1 Beautiful 1955 restoration by L T Lowery (William T Larkins)

K-1 Biplane 1919 = 1pOB; 40hp Ace; span: 28'4" length: 18'0" (?>16'1") load: 225# v: 63/55/30 range: 160. Alexander Klemin (Professor of Aeronautical Engineering, NYU), N W Dalton. Prototype had Ford T motor. One of the first planes to be built on an assembly line, primitive as it was. Four "self-aligning" I-struts, all-wood frame. Manufactured at the ACE Flying Field in New York City's Central Park. $2,500; POP: 8, one of which made quite a splash in the national press when it landed on Clay St in Oakland CA as a publicity stunt, 1/22/20 (p: C V Pickup). The 1920 version was modified with beefed-up struts, redesigned fuselage with enclosed motor, folding wings; span: 25'0" load: 235 v: 80/x/32; $3,000. Also produced in 1931 with Salmson AD-9 [952Y] c/n 1, and LeBlond 5D [953Y] c/n 2, registered as Ace 300 and 200 respectively. One located and restored in California 1955 [N69097]. SEE ALSO Keane Ace.

1928 = 2pOlwM; 125hp Siemens SH-14; span: 34'0" length: 26'0" load: 500# v: 125/110/35. Full-cantilever wing. POP: 1. Aviation described this as "a typically German low-wing monoplane with a plywood wing, and a welded steel fuselage," which suggests a design in the Aeromarine class.

Model D Baby Ace 1965 = 1pOhwM; 65-85hp various; span: 26'5" length: 17'9" load: 375# v: 110/100/34 range: 350 ceiling: 16,000' (data for 65hp). Much-modified evolution of the original Corben design. Marketed plans and kits for home-builders. ALSO SEE Corben Ace, EAA Baby Ace.

Model E Junior Ace 1965 = 2p version of Model D with 85hp Continental C-85 and side-by-side cockpit; span: 26'0" length: 18'0" load: 526# v: 130/105/65 range: 350 ceiling: 10,000'.

Biplane 1928 = 2pOB; 85hp Wright-Gypsy. POP: 1 [C44N] (also appears in some registers as Sportsman).

  Acme Sportsman Three-view

Sportsman (Model 21) 1928 = 2pOhwM; 55hp Velie M-5; span: 36'0" length: 22'11"; ff: 10/2/29. Edward Stalker (University of Michigan). Folding wings. POP: 2 with Velie [X152E, 13622], the last of which later had 100hp Kinner K-5 and was rechristened by its owner as Smith O, and 1 with 45hp Szekely [3028]. [X152E] is also noted in registers as Para-monoplane, for what that's worth.

  Acme Centaur 101

Centaur 101, 102 c.1953 = 6p conversion of surplus Stinson/Convair L-13A for bush flying, based on a prototype by Longren Aircraft Co, Torrance CA [N4901V]. Centaur 101 had 300hp Lycoming R-680-E3, Centaur 102 with 300hp Jacobs R-755-A2. POP: unknown, reportedly only a few.

F8F-2 195? (TC AR-32) = Civil conversion of Grumman F8F-2, possibly for racing.

  Acme Sierra at Edwards FTC [N12K], photo captioned: "Northrop Co. flying demonstrator ... represents the company's concept for the Air Force AX close-support aircraft design competition. Pusher system eliminates torque problems found in single-engine puller designs, Northrop believes." (Aviation Week via Ron Dupas)

Sierra S-1 Sportplane 1948 = 1pCmwM; 85hp Continental C-85 pusher; span: 20'2" length: 18'0" v: 200. Empty wt: 590#. Ron Beattie, Walt Fellers; built by Acme's Crawford and Keeney. Tail-mounted propeller. POP: 1 midget racer Sierra Sue built and flown, but never competed [N12K]; aka Beattie-Fellers S-1 (Ronald Beattie & Walter Fellers) in 1960. Used by Sierradyne in the '60s to test and promote Northrop's and Dr Werner Pfenninger's boundary layer control concepts, although it was never officially a Northrop plane. Reported by John D Lyon as presently displayed at Los Angeles Science Museum.

A Northrop idea for the AX Competition for USAF. I believe that the AX Competition led to the two prototypes Northrop A-9A and Fairchild-Hiller A-10A. The latter won, of course, and was built in quantity. I don't have reference material at hand, but I remember that in the early stages of the competition, turboprops were being considered for the AX, although the prototypes built under contract had turbofans. (— Jack Erickson 5/20/01)

Anser Amphib - 4pCmwMAm twin-jet prototype fighter was reported under construction in 1958, but never completed. Assigned RS-695B project number by the Army Air Forces Air Materiel Command. "Anser" was acronymic for "Analytical Service Inc," involved in the project to an unknown degree.

In the early 1960s resources were directed to a twin-jet amphibious Counter Insurgency fighter of the same general configuration, but with a fighter cockpit configuration and other accommodations. The COIN fighter selected at the time was North American OV-10A. I worked on ACME's COIN aircraft, but lost contact with the organization later in the '60s. (— Joseph F Smith Jr 3/18/04)

Sport 19?? = 1pOB; 100-200hp various; span: 19'7" length: 17'6" v: x/130/50. Aerobatic capability. Marketed plans and kits.

Sport II 1978 = 2pOB; span: 21' 8" length: 20'9" load: 645# v: 123/x/53; ff: 7/9/78. Also marketed plans for Super Acro Sport, Pober Pixie.

Santa Ana VM-1 [X4564] (clip: Orange Co Airport brochure)

1928 = 3pChwM; 80hp Anzani; span: 38'3" length: 25'0" load: 750# v: 90/x/45 range: 500. Purchase and rename of J O York's Santa Ana monoplane as prototype, with possible modifactions for commercial use. Later with 100hp Kinner. No record of further production. c.$2,500; POP: 1 [4504]. Probable reg error, should be [4564].

  Adam A500 [N500AX] (Berhard C F Klein coll)

A500 CarbonAero 2002 = 6pClwM rg; 700hp Continental; ff: 7/11/02 (p: Glenn Maben).

  Adam A700

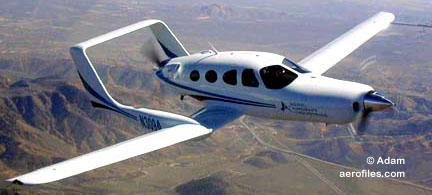

  Adam M-309 [N309A] (Adam Co)

M-309 2000 = 6pClwM rg; two 300hp Continental TSIO-550-G in pusher-puller tandem; span: 42'0" length: 34'6" load: 2300# v: 288/253/x ceiling: 25,000'; ff: 3/21/2000. Burt Rutan. Pressurized cabin; twin-booms. Composite construction by Scaled Composites in Mojave CA. POP: 1 prototype [N309A].

B-4 1930 = 1pOhwM; Henderson motorcycle engine. No data, possibly a modified Pietenpol [742Y].

ATA Cruiser 1928 = 3pChwM; 110hp Warner Scarab; span: 38'3" length: 25'0" load: 800#. Empty wt: 1200#. Semi-cantilever wing. POP: 1 [NX14M] s/n 100. Registration noted: "May be entered in National Air Races." Fate unknown; registration reassigned to Lockheed in 1952. This might be a Warner-powered copy of Activian.

1-A 1929 = 2pOB; Hisso. [X246K] c/n 1001.

Cloud Buster 1931 = 2pCM; 40hp Salmson AD-9. POP: 1 student project [NC10644]. Repowered in 1936 with 65hp LeBlond. This appears in some regs as a product of Bidwell-Yale Aviation Co; SEE Bidwell.

This has a complicated history as Adcox A-100, sold to Groat Aeronautical, who sold it to Shirley P Yale Air Service, who in turn sold it to William B Bidwell on 8/20/31, at which time it was called Cloud Buster Junior. It then went through several other owners before being scrapped in 1938. ( — John M Jarratt 7/20/02)

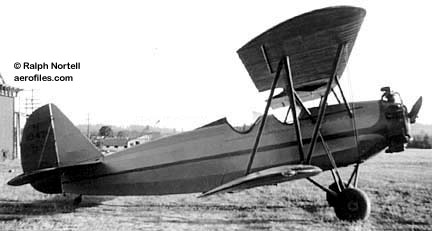

  Adcox Special [10471] (Ralph Nortell)

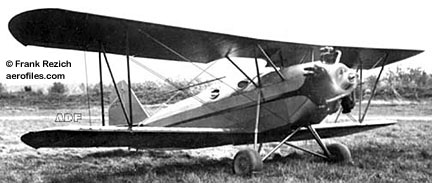

  Adcox Special [10471] (Frank Rezich coll)

Special 1929 = 2pOB; 100hp Kinner K-5. POP: 1 student project [10471]. Design evolved into aptly-named Student Prince.

  Student Prince [NC893K] (Ralph Nortell)

Student Prince (Aircraft Builders) 1929 (ATC 2-258) = 2pOB; 85hp Cirrus Mk III; span: 30'3" length: 23'6" load: 585# v: 110/85/37 range: 500; ff: 9/17/29 (p: B B Smith). Basil B Smith. POP: 6, of which only 3 were certificated [NC263V, X828M, NC893K], the other 3 being restricted to flights within Oregon. The last one ended up certificated after WW2 as an amateur-built aircraft. Cirrus, with inherent dependability problems, was soon replaced by 100hp Kinner K-5, then 110hp Warner, 150hp Comet, and 150hp Hisso A (one even gained a 220hp Continental in 1963).

Student Prince X (Aircraft Builders) 1931 = 90hp ACE. POP: 1 [NC10686].

  Addems-Nieuport 11 replica (William T Larkins)

First airplane, a glider, was built in 1916 from plans in Aviation Week and flown successfully enough to qualify the teenager for membership in the Early Birds organization. On retirement from a career flying for Natl Air Transport and UAL, Addems became well regarded for his faithful reproductions of classic aircraft.

Stallion 1994 = 4pChwM rg; 280hp Continental IO-550-G; span: 35'6" length: 25'0" load: 1400# v: 241/224/69 range: 1500. [N408S].

c.1973 = 1pChwM; 75hp Continental C-75; span: 19'6". Empty wt: 554#. [N1857]. Based on Tailwind and Cougar designs.

Midwing 1957 = 1pCmwM; 65hp Continental; span: 18'3" v: x/110/x range: 250. POP: 1 [N2148C].

SJ-1 Head Skinner 1958 = 1pOhwM; 65hp Continental (replaced with 125hp Lycoming O-290-G4 Canfield c.1963); span: 24'6" length: 20'0" load: 300# v: 180/150/60 range: 300. Gull-wing.

  Advance? Verification needed (TKnL coll)

c.1923 = 1pOB. Logic says this is Vearne Clifton Babcock (SEE Babcock and Taubman), but there was no info found on this creation. Note odd rudder and overhanging ailerons! Minuscule lettering at top of rudder says: "Advance Aircraft Co," and on fuselage is: "DISPATCHEUR" and "C-3." The only Advance Co we know of was an early Waco name, but this is certainly not one of theirs.

1983 = Cessna conversions to PT6A turboprops.

No data found on this operation—possibly sailplanes or untralights.

  Distributor Wing DWI-1 Photo and cutaway art (Avn Week via Ron Dupas)

Distributor Wing DWI-1 1965 = Unusual twin-engine 1pClwM agricultural aircraft with a powered, internally-mounted spray system; two stacked Lycomings—a 350hp IGO-540 for flight and a 108hp O-235 (?>O-320) driving an axial-flow fan; span: 43'10" length: 28'4" v: x/70-150/74; ff: 1/30/65. The plane climbed at 350fpm at gross weight of 5,200# with just the O-540; the O-235 powered the spray system and provided thrust augmentation. Guide vanes in the wings increased flap effectiveness. Cutaway art shows air flow path into an hydraulically-run metering gate feeding material from the hopper, through wing ducts and out variable wing slots. Hopper was a drop-in unit, fuel was in leading-edge tanks.

1910 = No data. Perhaps the company was only a supply house.

  Curtiss, McCurdy, Bell, Baldwin, Selfridge (Smithsonian)

About the AEA

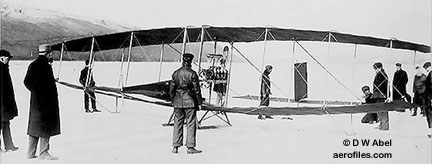

  AEA Red Wing (Paul Matt coll via Avn Heritage coll)

Aerodrome #1, Red Wing 1908 = 1pOBF(skids); 40hp* Curtiss B8 air-cooled V-8 pusher; span: 43'4" length: 26'3" load: 185#. Thomas Selfridge. Named for its red fabric coloring, covered thusly for the sake of photographic documentation. First public flight of an airplane in the US. Having no lateral control, it crashed on its first flight at Lake Keuka NY on 3/12/08 after flying a distance of 318'11" (p: Baldwin). *Actual flight efficiency was estimated to be less than 20hp.

Aerodrome #2, White Wing 1908 = 1pOB; 40hp Curtiss air-cooled V-8 pusher; span: 42'3" length: 26'3" load: 175#; ff: 5/18/08 (p: Baldwin). F W Baldwin. Tricycle gear; first use of ailerons (which led to long-term litigation over the Wright Brothers' claim of violation of their patent for movable wing surfaces). Lateral control of movable, triangular ailerons was by way of a body yoke attached to the pilot, who leaned in the direction of a turn. Flew a distance of 1,017' on 5/21/08 (p: Glenn Curtiss). Damaged beyond repair on landing two days later and abandoned.

  Curtiss June Bug "Albany Flier" (postcard)

Aerodrome #3, June Bug 1908 = 1pOB; 40-50hp Curtiss air-cooled V-8 pusher; span: 42'6" length: 27'6" load: 142# v: 39; ff: 5/21/08 (p: Curtiss) for a distance of 152 yds. Glenn Curtiss. Employed pilot-induced movable wing-tips as ailerons, as on White Wing. Made a total of 32 flights, one of which as the first plane to fly one kilometer, on 7/4/08, at a recorded 39mph, for which Curtiss was awarded the Scientific American trophy, then crashed on 1/2/09 and went into retirement. Design evolved into 1909 Curtiss Golden Flyer. Coincidentally, aviation's "dope" also originated here when plain varnish used to water-proof fabric coverings soon cracked with use and a more flexible replacement was created by AEA from a test mixture of paraffin, turpentine, and gasoline. Over the years that basic formula was much modified and improved, but June Bug had the first coat of actual dope. How they came to choose that word, which stems from the Dutch term "doop," for a sauce or mixture, is not known.

  AEA Loon (Paul Matt coll via Avn Heritage coll)
  AEA Loon Poor quality but rare shot (Library of Congress)

Aerodrome #3-A, Loon 1908 = June Bug as a twin-pontoon floatplane, attained a surface speed of 27mph, but failed to break loose from the water. During subsequent attempts it went out of control, sank in the shallows, and became frozen in the ice. Further experiments in water take-off were left to Curtiss' 1911 Hydroaeroplane.

  AEA Silver Dart (Leslie Burgess coll)
  AEA Silver Dart

Aerodrome #4, Silver Dart 1908 = 1pOB; 50hp Curtiss water-cooled V-8 pusher; span: 49'1" length: 30'0" (?>32'0") load: 290#* v (est): 40 range: 20; ff: 6/21/08 (p: McCurdy). John McCurdy. *Calculated useful load showed figures of 150# for pilot, 110# of gas and oil (including tank), and 30# of water. Made from steel tube, bamboo, friction tape, wire and wood, it was covered with silvery rubberized silk balloon-cloth, its propeller was carved from a solid block of wood, and it had no brakes. The last of AEA's team efforts, it went to Canada and also became the first airplane to fly in that country (2/23/09). Although Canadian Army officials were for the most part unimpressed, doubtful that airplanes would ever amount to much in warfare, AEA was finally invited to the base at Petawawa to demonstrate their machine. Sandy terrain there was a problem for the aircraft's small wheels—McCurdy faced great difficulty taking off. Then, landing after its fifth flight, the ship crashed when one wheel struck a rise in the ground. Thus ended the notable, albeit brief, career of the Silver Dart in which McCurdy had flown over an estimated 3,000 ground miles.

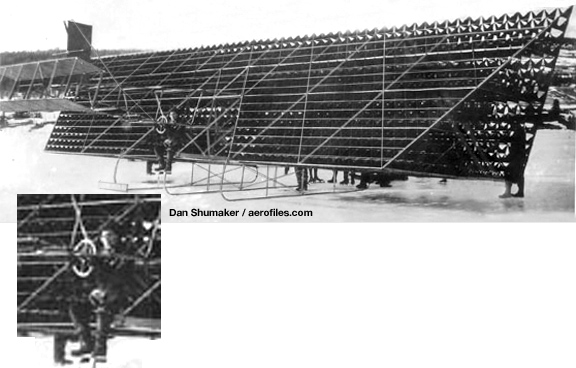

  AEA Cygnet (Dan Shumaker coll)

Aerodrome #5, Cygnet 1909 = Odd "flying wall" on skids with a huge frontal surface composed of 360 tetrahedral cells—a concept carried forward from Bell's 1902 kite designs—arranged in a rectangular wingform, and with the pilot perched well out in front on skids; span: 40'0" (?>52'6") length: 13'1". Tested at Baddeck, Nova Scotia, on 2/22 and 24/1909, but failed to fly. Alexander G Bell. Developed from 1907 kite-glider Cygnet I, which was towed by a motorboat to an altitude of 168' (p: T Selfridge), but was destroyed in landing on the water. As Cygnet II, it was modified with tricycle gear, 26'4" span, and an 8-cylinder Curtiss motor, with no success. It did finally fly, as Cygnet III, with 70hp Gnôme rotary to help overcome its frontal mass, from ice-covered Lake Bras d'Or, Nova Scotia, on 3/1/12, attaining 43mph (p: J McCurdy).

1908 = Little was found about this intriguing project, quite apparently unbuilt. July 1909 Fly reported formation and funding of the company to develop "the Pennington devices ... a combination of dirigible and aeroplane" that would result in a machine 1,250' long capable of traveling 9,000 miles in a single voyage, and that contracts were signed for "several aeroplanes at $5,000 each." First stock issue was claimed to have gone to none less than Standard Oil Co, and construction would be at the (Lewis) Nixon shipyards on Staten Island, one of the principals.

V.B.L.-1 1921 = OB tractor described as an "express transport of three-ply construction." 1922 Eaton Chronicles reported that Rogers Construction Co (SEE CD Air Express) "... takes over the building of a Sport Biplane designed by C H Day of the defunct Aerial Transportation [sic] Corp." Then in 1925, "Charles 'Pop' Dickinson buys the C D Air Express from Rogers," which is described as a C H Day design. This would be conclusive proof that VBL-1 and CD Express are one and the same.

1959 = 2phwOM. Roadable airplane with two engines in a tractor-pusher configuration; tri-cycle gear. Airline captain Helsmer built this machine over a two-year period for $2,300 [N9085C]. It was later converted into single-engine Aero Car 3. Halsmer also built a high-wing two-seater (Model 2?) with a uni-twin arrangement of two 65hp engines driving two counter-rotating props. [N12043]

Model 3 c.1963 = 2phwOM; 85hp Continental pusher; span: 30'0" length: 19'0"; v: 105/85/48. Roadable airplane with a pusher engine and four-blade prop. Wing with wood spar and aluminum ribs; fabric-covered steel tube fuselage; quad gear with steerable front wheels. The wings could be folded by one man in five minutes for driving as a car up to 50mph. [N9085C].

  Aero Commander 100 Cadet [N3871X] (Ron Dupas)

100, Cadet, Darter 1965 = Continuance of Volaire 1050. 4pChwM; 150hp ?; load: 970 v: 142/128/48 rang: 510 ceiling: 13,000. $8,950 in 1969. Name changed to Darter in 1968.

  Aero Commander 200D [N2943T]

200D 1966 = New production of Meyers 200D. 4pClwM rg; 285hp ?; load: 1060# v: 235/215/54 range: 1,060 ceiling: 18,500'.

200E 1967 = Swept-tail 6p version of 200D. POP: 1.

500-A (6A1) 1960 = Continental IO-470-M; redesigned nacelles, structural mods, new landing gear, gross wt: 6250#.

  Aero Commander 500B [N9384R] (Eddie Coates)

500-B (6A1) 1960 = Lycoming IO-540-B1A5; gross wt: 6750#.

500-S (6A1) 1968 = Interior changes, pilot's door.

500-U, Shrike Commander, Shrike Esquire (6A1) 1964 = 4-8pChwM rg; two 230hp Lycoming O-540-A1A6, later GO-480-C1B6; span: 49'1" length: 36'7" load: 2230# v: 215/203/78 range: 750 ceiling: 19,400'. $103,950. The only twin in its class approved for limited aerobatics, as demonstrated by Bob Hoover in tours. Certified in 1958.

  Aero Commander 520/L3805

  Aero Commander 520 [N4166B] (Ralph Nortell)

520 1951 (6A1) = 5-7pChwM rg; two 260hp Lycoming GO-435-C2B; span: 43'10" length: 34'3" load: 1850# v: 211/197/60 range: 850. In production, subsequent dash numbers represented individual planes. $45,000, $66,000 in 1954; POP: 150 by end of production in 1954, of which 3 to Army and USAF as L-26. Later marketed as Ted Smith Aerostar 600/601, and Rockwell 560/680/685/710 series.

560, 560-A (6A1) 1955 = 5-7pChwM rg; two 295hp Lycoming GO-480-B; span: 49'6" length: 35'0" load: 2200# v: 222/210/66 range: 1625 ceiling: 22,500'. Swept vertical tail, increased gross weight, structural mods.

560-A (6A1) 1955 = GO-480-C1B6; lengthened fuselage, redesigned nacelles, new landing gear.

560-E (6A1) 1957 = GO-480-G1B6; 32" wingtip extensions, gross weight increase.

600 c.1970 (2A7, A3SW) = ChwM rg; two 290hp Lycoming IO-540; span: 34'3" length: 34'10" load: 2075# v: 260/250/77 range: 1400 ceiling: 22,000'.

  Aero Commander 680 (Ron Dupas)

680-E (2A4) 1958 = 4-6pChwM rg; two 320hp Lycoming GSO-480B-A6; span: 49'6" length: 35'1" v: 255/226/85 range: 1400. Gross wt: 7500#.

  Aero Commander 680F [NASA801] (NASA-Dryden)

680F 1964 = no data.

  Aero Commander 680FL [N68X] (Eddie Coates)

680FL, Courser Commander 1963 = 5-7pChwM rg; two 320hp Lycoming GSO-540-B1A/-B1C; span: 49'6" length: 35'1"; ff: 12/29/62. POP: sold only in small numbers and cancelled in late 1969.

680T 1964 = Company's first turboprop; two 575hp AiResearch TPE-331 (605hp TPE-331-43 in 1965); ff: 12/31/64.

680T Turbo II, Hawk Commander 1969 (2A4) = 7-9pChwM rg; two 500hp Garret AiResearch TPE-331; span: 44'0" length: 43'0" load: 3935# v: 290/268/94 range: 1490 ceiling: 25,600'. $369,500.

680V 1967 = TPE-331-43BL; picture windows, clamshell gear dors, gross wt: 9400#. 680W1968 = no data.

  Aero Commander 681B

685 (Model 680-FL) (2A4) 1962 = 4-6pChwM rg; two 435hp Lycoming GTSIO-520F; span: 49'3" length: 41'6" v: x/225/85 range: 1160.

690 Turbo Commander 1969 = Replacement for Hawk Commander; two 700hp TPE-331-5-251K; ff: 3/3/69.

700 SEE Aerostar 700.

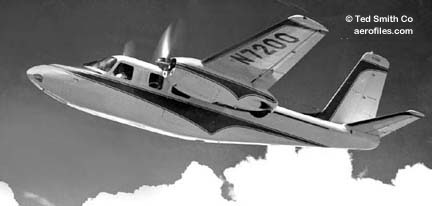

  Aero Commander Alticruiser prototype [N7200] (Ted Smith Co)

720 Alticruiser (2A4) 1958 = Improved 680-E as the world's first certificated, pressurized, non-airline business plane. 4-6pChwM rg; two 340hp supercharged Lycoming GSO-480B-1A6; span: 47'0" length: 35'5" load: 2600# v: 255/226/71 range: 1550 ceiling: 25,360'. Extended wing, refrigerated air conditioning, Lear autopilot. $183,750.

  Aero Commander 1121 (Johan Visschedijk coll)

1121 Jet Commander 19?? = No data. Production rights sold to Israel when Rockwell took over operations.

Lark 1968 = 4pChwM; 180hp Lycoming; load: 1000# v: 138/132/60 range: 525 ceiling: 13,000'.

L-26 1956 = USAF and Army version of 520, 560, and 680. All redesignated U-9 in 1962.

YL-26 1952 = Civil 520. Two 260hp Lycoming GO-435C. POP: 3 to Army [52-6217/6219]; became U-9B.

YL-26A 1955 = Civil 560. POP: 1 to USAF [55-3815]; became U-4A.

L-26B 19?? = Civil 560-A. Two 270hp supercharged Lycoming GSO-480. POP: 14 to USAF [55-4634/4646, 57-1791]; became U-4B.

L-26C 1956 = Civil 680. Two 320hp supercharged Lycoming GSO-480B; span: 44'0" v: 255/198/x range: 1500 ceiling: 22,900'. POP: 2 to USAF as U-4B [55-4647/4648] (SEE below), 4 to Army [56-4023/4026]; became U-9C.

NL-26D, RL-26D 1957 = US Army; electronics systems testing as NL-26D and side-looking radar (SLAR) as RL-26D. POP: 1 NL-26D [57-6531] and 2 RL-26D [57-6183/6184], plus 3 modified from L-26C; became NL-9D and RU-9D. Two more were built, but destroyed in pre-delivery accidents.

Thrush Commander (Rockwell, Quail) 1968 (A3SW) = 1pClwM agplane; 600hp P&W R-1430-AN1; span: 44'5" length: 24'5" v: 140/124/66 range: 470. Evolution and refinement of Snow S-2. Hopper capacity: 400gal/3,280#. $39,500 in 1968/POP: c.250.

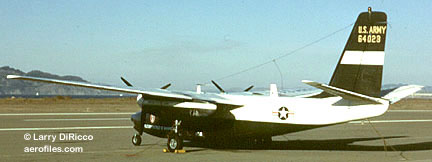

  Aero Commander U-9C [56-4023] (Larry DiRicco)

U-4, -9 1962 = USAF and US Army respective redesignations of L-26.

  Aero Commander U-48 [55-4647] (USAF Museum)

U-4B 1956 = POP: 14 redesignated from L-26B, plus 2 L-26C [55-4647/4648] ordered by and for President D D Eisenhower as the first lightplanes to earn the designation "Air Force One" and painted in the now standard blue-and-white color scheme.

Comp Air 3 19?? = Kit aircraft. 3pChwM. No data.

Comp Air 4 19?? = Kit aircraft. 4pChwm; 150-180hp engines. No data.

Comp Air 6 19?? = Kit aircraft. 6pChwM; 220-300hp; span: 35'0" length: 24'9" load: 1300# v:257/195/55.

Comp Air 7 SL 19?? = Kit aircraft. 6pChwM; 657hp Walter 601D turboprop; span: 33'0" length: 30'6" load: 2000-2300# v: 237/225-250/50-60 range: 900.

Comp Air 7 Turbine 19?? = Kit aircraft. 6-7pChwM; 657hp Walter 601D turboprop; span: 35'0" length: 29'6" load: 1670-2050# v: 257/250/55-65.

Comp Air 8 19?? = Kit aircraft. 6-8pChwM; 657hp Walter 601D turboprop; span: 33'0" length: 31'0" load: 2000-2500 v: 229/225/55 range: 500-700.

Comp Air 10 19?? = Kit aircraft. 10-11pChwM; 300hp Continental, later 724hp Walter LOM 601D. [N4105T].

Merlin 19?? = Kit aircraft. 2pChwM; 65-100hp engines. No data.

Sea Hawk 1982 = 2-3pCBAm; 70hp Revmaster.

Sea Hawker 1982 = 2pCBAm; 150hp Lycoming O-320; span: 24'0" length: 21'6" load: 750# v: 148/138/42 range: 1200; ff: 7/x/82 [N82SO]. Marketed kits and plans. POP: 32 known flying by Mar 1988.

Aero-Coupe 1928 = 3pO-CB; 120hp Warner Scarab; span: 32'0" length: 24'0" load: 1000# v: 115/100/38 range: 460. F R Anderson, a USAS Brig General at the time. Convertible to an open cockpit for training use, or the seats could be removed to make a cargo/mail bay. $5,800; POP: 1 [4917], crashed in 1926. Selfridge Field Museum (MI) reportedly has info in their files, as well as two small photos.

DG-1 1977 = 1pCmwM rg; two 330 Mazda RX-3 tractor/pusher; span: 20'0" length: 20'6" load: 600# v (est): 450/350/98 range: 460; ff [N10E]: 7/25/77.

Pulsar 1985 = 2pClwM; 64hp Rotax 532; span: 25'0" length: 19'6" load: 440# v: x/130/42 range: 400. Mark Brown. Based on Star Lite prototype [N500SS]. Marketed kits.

Pulsar XP 1992 = 2pClwM; 80hp Rotax 912; load: 550# v: 165/140/x. [[N912XP].

Sparrow Hawk II, IIB 1986 = 2pCmwM, 64hp Rotax 532 (II) or 90hp Norton P62 (IIB) pusher; span: 34'5" length: 17'10" load 700# v (II/IIB): 105-130/95-120/36. Chuck Herbst. Twin-boom. [N8728A].

1984 = Business aircraft, no data. Little, if any, production noted.

  Aero Flight Streak 85 [NX92846] (Museum of Flight)
  Aero Flight Streak 225 [N6300C] (Frank Rezich coll)

Streak 85 (AFA-1), 125 (AFA-2), 165 (AFA-3), 225 (?) 1947 = 2pClwM rg; 85hp Continental C-85-12FJ; span: 25'3" length: 21'2" load: 559# v: 175/165/52 range: 700 ceiling: 17,000'. James Nagamatsu (ex-Curtiss Co). All-metal; tricycle gear; tandem cockpits under a bubble canopy. $3,995; POP: 2 [NX92846]; logic suggests that 225 was a Continental and the model probably was AFA-4 [N6300C], but no data were found to substantiate this. Repowered at Long Beach in Oct 1947 with 125hp Continental C-125 as AFA-2 (length: 21'8" load: 600 v: 203/192/55 range: 600-750), and c.1949 as AFA-3 with 165hp Continental C-125 (length: 22'4" load: 635 v: 219/210/x range: 1065). Project abandoned after failing to arouse interest in a saturated post-war market. Disposition of prototype unknown.

Bearcat 1984 = 1pOhwM; 42hp Rotax 447 or 52hp Rotax 503; span: 30'0" length: 17'6" load: 425# v:75/60/26 range: 120. Jack Hutchinson. Kits for home-builders. Agricultural version as Ag Bearcat with 63hp Rotax 532..

TC-2 1983 = 2pClwM rg; 100hp Continental O-200-A; span: 21'0" length: 16'7" load: 425# v: 181/164/57-63; ff: 5/16/83. All-composite construction. [N2484V].

Safety Plane 1937 = 2pChwM; 120hp Ford. [NX17895].

Loadstar Model 100 1966 = 2pCB; 105-180hp Lycoming; ff: 8/x/66. William G Dorsch. Conversion of Piper PA-18 Super Cub or J-3 Cub to biplane.

1910 = No data.

  Aero Products A-1 [NX1270] (E J Young coll)

A-1 1944 = 2pCH; 155hp Franklin(?). No data. [NX1270]. Flew in 1945, then vanished.

A-3 1944 = 2pCH; 135hp Franklin; rotor: 30'0" v: 100/x/0. A refinement of A-1. POP: 1 [NX1272], no production.

J-2 1962 = Development of Jovanovich J-2. 2pCH; 200hp Lycoming O-360-A2D pusher; rotor: 26'0" span: 11'2" length: 16'0" load: 500# v: 122/95/0 range: 200 ceiling: 10,000'. D K Jovanovich. Stub wings supporting twin booms, twin tails. Three-blade rotor with articulated blades, unpowered in horizontal flight.

  Guppy 201 Acquired by NASA (NASA)

B-377GT aka Guppy-201 1970 = Four 4912hp Allison 501-D22C turboprops; span: 156'3" length: 143'10" payload: 54,000# v: x/288/x range: 500; ff: 8/24/40. Upper fuselage lobe with interior diameter of 25' added to stretched C-97 fuselage, plus parts from Airbus, Concorde, DC-10, and TriStar; engines from retired Lockheed Electras. POP: 4; 2 built by Aero Spacelines in early 1970s [N211AS/212AS] and sold to Airbus Industrie/Aérospatiale to haul components of A300Bs and Concordes, and 2 built in early 1980s for Airbus by UTA Industries in France. Retired by Airbus in early '90s; reportedly 3 went to European museums, and the last one was bought by NASA and is presently in use in the US.

B-377MG Mini Guppy 1967 = Four 3500hp P&W R-4360-B6 Wasp Major or 4912hp Allison 501-D22C turboprops; span: 156'3" length: 132'10"; ff: 5/24/67. Stretched ex-USAF C-97 modified by addition of new upper fuselage lobe with interior radius of 18'; swing-tail for cargo loading. POP: 2 [N1037V, N111AS]; first aircraft powered by R-4360s, second by Allisons taken from Lockheed Electras; crashed at Edwards AFB on 5/12/70 after engine failure, crew of four perished.

B-377PG Pregnant Guppy 1962 = Four 3500hp P&W R-4360 Wasp Major; span: 141'3" length: 127'0" v: 240; ff: 9/19/62. Jack Conroy. Ex-airline Boeing 377 modified by stretching the fuselage 16'8" and adding a huge, new upper fuselage lobe for outsize cargo. Capable of carrying 34,000# of cargo. Aircraft was loaded by removing the tail section just aft of the wing trailing edge. Used extensively in support of NASA space program. POP: 1 [N1024V].

  Super Guppy SG [N1038V] (Dan Eckland)

B-377SG Super Guppy aka Guppy-201 1965 = Four 5700hp P&W T34-P-7WA turboprops; span: 156'3" length: 141'2"; ff: 8/31/65. Ex-USAF YC-97J modified by adding wing root plug, stretching fuselage 30'10", and adding huge new upper fuselage lobe with interior radius of 25'. Nose of fuselage pivoted to allow cargo loading. Used extensively in support of NASA space program, it was the only aircraft capable of carrying the third stage of the Saturn V launch vehicle and the Lunar Module adaptor. POP: 1 [N1038V]. Displayed at Pima County Air Museum, Tucson AZ.

Guppy-101 1970 = Rebuilt from Boeing Stratocruiser with four 4900hp Allison 501-D22C turboprops; ff: 3/13/70. First with the opening nose section.

Guppy-201 SEE B377SGT.

  Aero Sport S-2 [X14202] (Clark Scott)

S-1 1934 = 1pOB; 37hp Continental. J S Marrott (unverified). No specs found for this mini-biplane. [X14202] c/n 2. Possibly related to the Sport/Andercraft built in 1932 by Fletcher & Sartain Co in Santa Paula, or could just be coincidental in time and place. Reg canceled by CAA on 12/1/34 when license expired.

Rail 1970 = 1pOlwM; two Aerosport-Rockwell JLO LB-600/2 pushers; span: 23'4" length: 15'9" load: 272# v: 96/66/45 range: 120 ceiling: 12,000'; ff: 11/4/70 [N4334]. An essential design, hardly more than a winged rail, as its name suggests. T-tail, tri-gear; pilot out in the open in front.

Quail 1971 = 1pChwM; VW 1500-1800cc; span: 24'0" length: 15'11" load: 258# v: 130/110/48 range: 230 ceiling: 12,000'; ff: 12/x/71 [N88760].

Scamp A 1973 = 1pOB; 60hp VW 1600-2100cc; span: 17'6" length: 16'8" load: 238# v: 95/90/42; ff: 8/27/73. R D Fehlner, E B Trent, Harris Woods. Tricycle gear, T-tail. Marketed plans and kits for home-builders. POP: reportedly 1,050 plan sets sold (no time reference).

Woody Pusher c.1970 = 2pOhwM; 65-75hp Continental pusher; span: 29'0" length: 20'5" load: 520# v: 98/87/45. Marketed plans and kits for home-builders.

700, Super 700 19?? = 4-6pClwM rg; two 350hp Lycoming TI0-540-U2A (Super 700: modified I0-540-SIA5); span: 36'8" length: 34'10" load: 1715# v: 328/282/84 range: 1151 ceiling: 30,000'.

FJ-100 1990 = Business jet. 6-8pCmwM rg; two 1200# Williams FJ33-1 turbofans; v: 460/x/x ceiling (max): 41,000'. Engines pylon-mounted on fuselage.

Executive 1970 - Mooney M20F with 200hp Lycoming IO-360-A1A; span: 35'0" length: 24'11" load: 1100# v: 185/x/62 range: 1147 ceiling: 18,800'. $23,995; no production.

Ranger 1970 - Mooney M20C with 180hp Lycoming O-360-A1D; span: 35'0" length: 24'2" load: 1050# v: 176/x/57 range: 1000 ceiling: 19,500'. $19,995; no production.

Boeing F4B-2/P-12C 1978 = 4/5-scale replica. 1pOB; 245hp Jacobs R-755-9; span: 24'0" length: 17'9" load: 570# v: 165/135/63 range: 386; ff: 8/x/78.

Call-Air B-1, -1A 19?? (A7WE, A8WE) = Certifications as Restricted category ag applicator with Lycoming IO-720-A1A (A7WE) and Normal category with P&W IR-985-AN1 (A8WE). Is a reacquisition from IMCO by the Call family?

Conversions of war-surplus aircraft with tank systems for firefighting operation—AF-S2, B-17, C-119, C-130, CH-47, DC-3, DC-4, DC-6, DC-7, HU-16.

  Aetna Aerocraft 2SA (Ron Dupas coll)

Aerocraft 2SA 1940 (ATC 733) = 2pOlwM; 160hp Kinner R-5; span: 34'6" length: 24'6" load: 614# v: 125/110/45 range: 400. Available with 175hp R-5. POP: 6. Tandem cockpits, but the prototype was modified from a side-by-side Kinner B-2 [NC14200]. Later versions known as Aetna 2SA. SEE Timm 160.

A-1 1931 = 3pOM; 180hp Hisso E. Arthur Aggergaard. [587W] c/n 100; ff: 5/18/31. Built from parts supplied by Nicholas-Beazley Co at Marshall MO. Reg cancelled 2/1/33.

A 1934 = 2pOMF; 40hp Ford A. [12778] c/n 2.

AH 404 1976 = 31pChwM rg; four 420hp GMC-Allison 250-B17B; span: 65'0" length: 48'4" load: 9400# v: 210/160/x range: 1380; ff: 12/1/76 (p: Herman "Fish" Salmon). POP: 2 [N404AR, N1028G].

B-3-A 1934 = 1pOM; 41hp Church. [22Y] c/n 353.

Express 1932 = 3pOM; Hisso. [11926] c/n 372.

  Air & Space 18A

18, 18A Heliplane 1996 (TC 1H17) = 2pC hybrid helicopter and autogyro; Lycoming O-320 pusher; v: 75/60/30. Triple tails. POP: 68 Umbaugh 18A produced through 1965, but doors closed in 1966. Extent of production after refinancing and restructing by Farrington unknown.

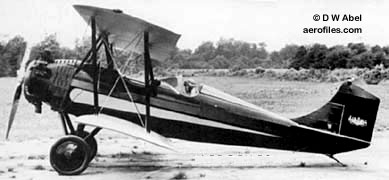

  Air Boss (Aviation Heritage coll)

1928 = 2pOB; various 90-180hp motors; span: 32'5" length: 23'3" load: 850# v: 110/90/30 range: 700 (data for 90hp). Glenn Messer. POP: about 12; [715K] (Wright R-975), [876Y] (OXX-6), [883Y] (Siemens), [884Y] (Hisso E), [9410] (OX-5), et al.

Watkins SL-1 [X470E] (Paul Davis)

1929 = 2pOlwM; 60hp LeBlond 5D; span: 37'0" length: 23'6" load: 480# v(with 30hp motor): x/75/35. W C "Chet" Cummings. $2,750; POP: 1 reportedly built as a marketing test project. The title implies more of a funding organization than a factory, and is in all likelihood Watkins Skylark.

1926 - Listed here only for interest value. Despite prominent advertising, there is no record of this consortium's aircraft being produced. Ads, along with attendant press releases about the Super Rhône-powered Airco Amphibian and Airco Super-Sport, soon faded from aviation publications. No connection with British Airco-de Havilland.

Commander Elite Tandem (Air Command Intl)

Commander Elite 2006 = Manufacturers of 1-2p gyroplane kits with 53-67hp engines, accessories, components. No data.

F-1A c.1961 = Continuance of Forney Aircoupe F-1A. POP: c.30 by Forney and AirCoupe. SEE Alon.

Falcon 1932 = 2pChwM; 42hp two-cyl Air-Craft (Welch); span: 26'0" length: 20'6". $995, $1,150 with Continental A-40; POP: 1*. Orin Welch was undoubtedly the designer (and likely a principal), for the plane featured on a full-page Air-Craft Corp ad in Jan 1932 Popular Aviation bore the tail number of [11382] c/n 107, which was the first of the later Welch OW-5M batch. * Possibly [13500] c/n 108 was initially manufactured under this parent name, as well. Another interesting path leads to the Jackson B-2 (qv).

J-2 Cub aka Western Cub 1936 (ATC 620) = 2pChwM; 40hp Continental A-40; span: 35'3" length: 22'5" load: 407# v: 87/80/35 range: 210. $1,270; POP: perhaps 10 to 20. Company, a principal distributor, began producing Taylor J-2 under a subcontract for Taylor Co after their disastrous Bradford PA plant fire in Mar 1937.

Parrot 1930 - 2pCM; Velie M-5 (?>Anzani). [11132] c/n 100; dismantled and reg cancelled 5/19/31.

1930 - 2pOB; Detroit Aircat. Byron Goodes Cook, mechanics class instructor at Independence High School in Cleveland, under whose guidance the plane was built by students. [NC10558] c/n 1. Cook was also involved with Sundorph Aeronautical.

B-2 1930 = OB; Lambert R-266 engine; no other data found. POP: 1 [10285] c/n 2. Reg cancelled 11/21/32. ALSO SEE (Charles) Laird and Bryan-Laird.

BT-11 1940 - Plastic and plywood design to mock-up stage; none built.

Beta Bird 19?? = 1pOhwM; VW 1200-1600cc pusher; span: 25'6" load: 225#. Robert W Hovey. Marketed plans and kits. POP: ??.

Wing Ding 19?? = 1pOB; 12-15hp pusher; span: 16'4" load: 188# v: x/45/26. Marketed plans and kits. POP: ??.

19?? (A33SO) = Civil conversion of Grumman HU-16A, -16B, -16C (UF-1, UF-1G), -16D (UF-2), -16E (UF-2G).

OHS-111 1929 = 2pChwM; 55hp Velie M-5, also Warner Scarab. Very likely this is the Cabin-Aire monoplane that the company exhibited in Chicago in 1928. "OHS" designation was for company treasurer O H Snyder. [X7950].

A-1 1926 = 3pOB; 90hp Curtiss OX-5; span: span: 30'0" length: 24'0". [7291] c/n 1 registered on 4/7/28 to "Holmes," then on 8/25/28 to "Moore," both of Hennessey OK. Reg expired 3/28/30.

(Data: March 1930)
The Aircraft Engine Corp
Comet Engine Co
Scenic Airways
United Aviation Corp
Wyoming Airways

  Air-istocrat SP-7 [291M]

SP-7 1929 = 2pOhwM; 100hp Kinner K-5; span: 28'3" length: 20'0" load: 550# v: 122/102/38 range: 600. Leo Mohme, based on his own 1928 aircraft (qv). Plywood-covered parasol wing and forward fuselage. $3,945; POP: at least 7 [X217H (prototype), 291M, X336V, X402E, X870H (65hp Velie M-5), X10079, x].

  Air-istocrat SR-4 [283V] (Gene Palmer coll)

SR-4 1929 = 1pOlwM; 110hp Warner Scarab; span: 24'0" v: 158/140/55 range: 500. Stretched Gee Bee look-alike with panted wheels. $9,500; POP: 1, built for Willard van Buren King to compete in the 1930 Miami All-American Air Meet [283V].

  Air-istocrat SR-5 [NR860W] (Frank Rezich coll)

SR-5 1929 = 1pOlwM; 95hp Cirrus. Cirrus Derby entry [NR860W].

c.1926 = 3pOhwM; 90hp Curtiss OX-5. Surplus Curtiss JN-4D rebuilt as a parasol monoplane [X3742].

  Airline Arrow (clip via Museum of Flight)

Arrow 1922 = 8pCB; 300hp Hall-Scott(?); v: 100. Transport, a major modification of a Standard J-1 by (John W) Rogers Aircraft Co, Los Angeles, for this aspiring LA-Imperial Valley airline proved unsatisfactory. It and the fledgling company flew into obscurity in the Depression Era; however, it left behind its mark as most likely being the second commercial airliner design, after Lawson Air-Liner. The above scan from Dennis Parks is of a picture in Feb 1923 Aero Digest, identified as "Rogers Aircraft Co Arrow," so we're going on a hunch that it belongs here, but it's not glued down permanently yet. Remnants of a J-1 are obscured in that extensive redesign, but those certainly look like the Standard's beefy wing struts.

  Airmaster Avalon 680 [N767LB] (B C F Klein coll via AIN)

Avalon 680 1983 = 6-7pChwMAm; two 750hp PT6A-135 pusher turboprops; span: 39'0" length: 32'0" load: 1900# v: 250/200/65 range: 1448; ff: 10/x/83. Also planned Twin Star 1000 and military Guardian, none of which was produced as known.

1928 = 3pOM; 180hp Hisso E; v: 135/x/40. Built from plans supplied by Fokker Co in Germany.

Arrow B-7 1928 = 2pOB; 90hp Curtiss OX-5. $2,780; POP: 1 [NC813].

AT-301/301A/301B 1973, 1978-87 = 1pClwM; 600hp P&W R-1340; based on Snow S-2.

AT-302/302A Turbo 1977 = 1pClwM; Lycoming LTP101-600A.

AT-400/400A Turbo 19?? = 550-680shp P&W PT6.

AT-401 1986 = 600hp P&W R-1340.

AT-401A 1991 = PZL-3S.

AT-501 1984 = 600hp P&W R-1340.

  Air Tractor AT-502 [N4531K]

AT-502 Turbo 1987 = 680shp P&W PT6; ff: 4/x/87; [N4531K].

AT-502A 1992 = 1100shp P&W PT6-45R; ff: 2/x/92.

AT-503A 1990 = 2pClwM; 750shp PT6A-34; [N503CP].

AT-802A 1992 = 1pClwM; ff: 7/6/92 [N1546H].

AT-802AF 19?? = PT6A-67AF.

  AirUtility AU-18 [N68819] (Aircraft of the World)
AU-18 1949 = 1pOmwM; two 75hp Continental C-75; span: 39'11" length: 21'11" load: 797# v: 125/x/x; ff: 4/18/49. Elsworth Gardenhire. Twin-boom, twin-tail fuselages with pilot's pod atop the wing midsection; detachable lower portion as a cargo pod. POP: 1 [N68819]; retired after its final flight in 1958. Modifications led to 1954 designation as AU-18-150B, as well as experimental AU-27 with 130hp Lycoming O-290, a ground-support plane for military trials (span: 48'6" length: 28'3").

Airwings X 1934 = 2pOM; 90hp LeBlond. [14382].

Terrier 1928 = 3pCM; three motorcycle engines. "Semi-bat wing." POP: 1 [X88E] c/n 1-T. Letter from Jolly to CAA 11/15/28 cancelled the license "since the plane never has been finished."

Hustler 500 1978 = ff: 1/11/78. Became Gulfstream American Hustler.

  AJI T-610 [N7754A] (Avn Week via Ron Dupas)

T-610 1968 = Temco TT-1 modified with 2950# GE CJ610-6 turbojet. POP: 1 [N7754A].

Turbo Star 1961 = Conversions of Cessna 402 and 411 to 400hp Allison 250-B17 turboprops.

JDA-8 1931 = 2pOhwM; 45hp Szekely pusher; v: 45/x/x. Side-by-side cockpit; braced, single-boom empennage, tricycle gear. POP: 1 [X897K]. Akerman, professor of aero engineering at Univ of Minnesota, was also partly responsible for the designs of some Mohawk aircraft.

  Akerman Tailless [NX14880] (Air Trails)

Tailless 1936 = 1pOM. Built as a student project, the flying-wing design with elevons and wing-tip rudders made only one flight [X14880].

AA c.1935 = No data. One of the overlooked pioneers of American aviation, Akin was reportedly experimenting with manned flight about the same time as the Wright brothers, but his early flights were in gliders. The AA was Akin's one-place design, but only a brief descriptive paragraph was found. He designed and built gliders, and was one of the first to be towed to altitude by a plane. He also made a record-breaking flight from NYC to Washington DC (glider or plane?) and constructed several powered aircraft. He built a 2pCmwM called the Buckaroo with deep-chord, tapered wings, and a photo I saw looked to be in the 1930s judging from cars in the backround and clothing styles. No number on it as proof, but I believe that plane must be [11936]. (— K O Eckland)

Stinger c.1990 = 1pCmwM; 100hp Continental O-200; span: 17'5" length: 16'0". Based on T-tail Cassutt. Fabric-covered steel-tube fuselage, plywood-covered wooden wing. [N7XR].
