REVISED: 9/20/08

Jackson

Clifford C Jackson, Birmingham and Marysville MI.

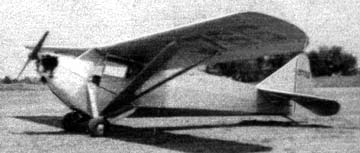

  Jackson O-2 [X12875] (Robert F Pauley coll)

O-2 1933 = 2pOhwM; 125hp Warner Scarab; span: 31'0" length: 20'8" load: 525# v: 125/110/45. Full-span ailerons, Handley-Page wing slots; wood-clad, steel-tube fuselage, fabric-covered wood wings; ff: 1/23/33 (p: Cliff Jackson). POP: 1 [X12875]. Sold to Meyers Aircraft Co in 1941 for marketing, which failed to materialize, although Meyers used the name for publicity and it is sometimes seen listed as the Meyers O-2. The plane was scrapped after 236 hours flying time, but the wings and empennage were salvaged by Jackson with the plan of building a second version, but it never came to pass.


Jackson

Jackson Aircraft Corp (A J McCourtie), Reynolds Field, Jackson MI.

  Jackson B-2 [15766] (Roy Oberg coll)

B-2 1936 = 2pChwM; 40hp Continental A-40-4. Began as a fuselage and wings found in an Ohio scrapyard, then a well-used Continental was located, and the rest hand-made to fit. [15766] c/n 15.

Apparently the remains that McCourtie had started out with were remnants of the Air-Craft Corp of America (its Falcon designed by Orin Welch). McCourtie said that the State was trying to get rid of the Identified Aircraft, and that he took his Jackson to South Bend IN, where they put it on the line at Welch Aircraft Co and made necessary changes to gain registration, and it came off as a Welch OW-5M [NC18261] c/n 143. This took place in Oct 1938, and he called it the "Welch Rabbit." (— Roy Oberg 11/28/98)


Jackson

Dr Lewis A Jackson, Central State Univ, Wilberforce OH.

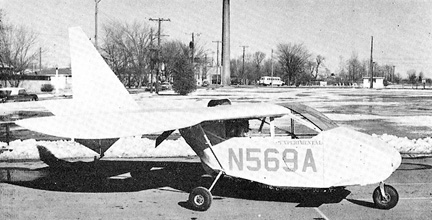

  Jackson Concept-7 [N569A] (Indiana Wesleyan Univ)

Concept-7 1963 = Roadable 4pChwM; 150hp Lycoming O-320 pusher; span: 13'6" length: 17'0" load: 700# v: 150/130/x range: 270 ceiling: 10,000'. POP: 1 [N569A]. Folding deltawings for surface travel. Flew only with test pilot because of marginal performance, but managed to log 15 hours in the air and 500 miles on roads. (Data from Jane's 1966/1967 via Friedrich Huggler 3/20/07)

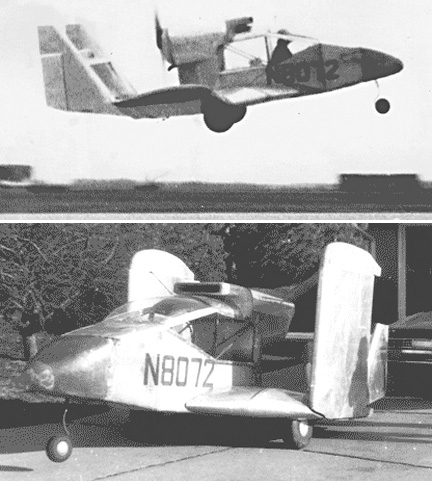

  Jackson J-10 [N8072] (Indiana Wesleyan Univ)

J-10 1956 = 1p flying automobile with folding wings and pusher engine; span: 16'0"; data lacking. [N8072].

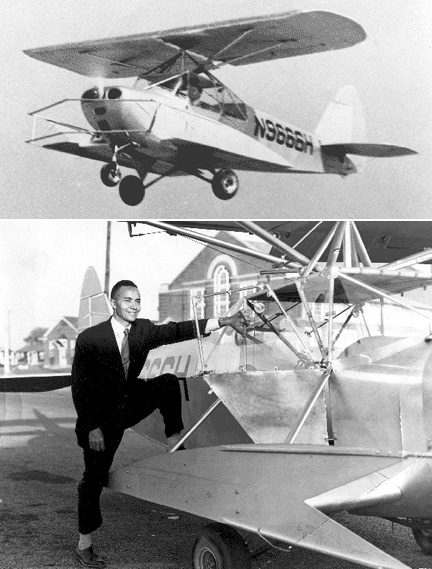

  Jackson Versatile I [N9666H] (Indiana Wesleyan Univ)

Versatile I 19?? = No data. [N9666H].


Jacobs, Jacobs-Emerson

1910: Multiplane Ltd (fdr: Henry William Jacobs), Atchison KS. 1912: Ended operations.

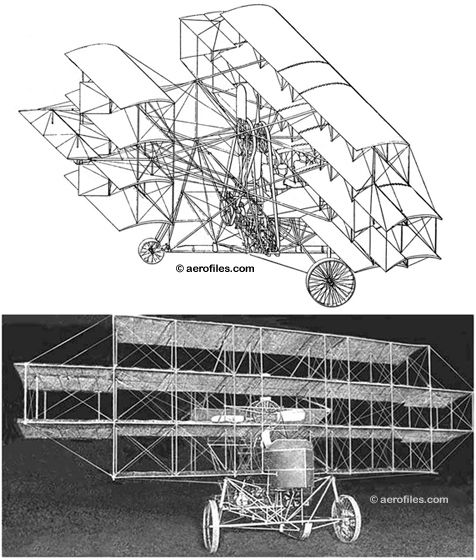

  Jacobs Multi-plane on display (enhanced clip from Aerial Age)

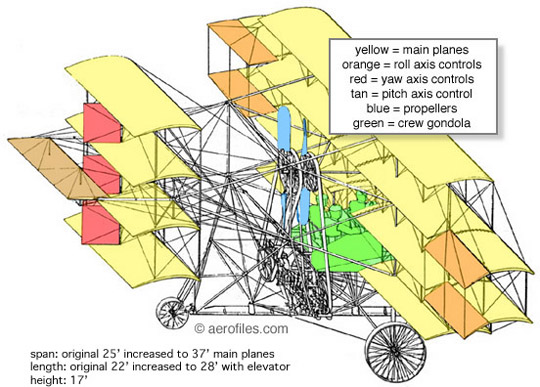

  Jacobs Multi-plane components (AeroFiles)
Multi-plane 1910 = 4p four-plane experiment with two 35hp pushers (most likely Emersons), replaced by Jacobs' own motors*. Gross wt: 2000#. Made its debut at the New York Exhibition that year, and was described 20 years later in a retrospective: "Optimistic reports credited it with flight performances that would be marvelous even now (1930), but verification was inadequate."

*These were improved air-cooled engines that my great-grandfather [H W Jacobs] invented to replace the two original underpowered engines [Emersons?] with which the plane flew in 1910, piloted by his younger brother, Frank Jacobs. Frank died in a swimming accident shortly after the first flight, and my great-grandfather was so distressed at being unable to save him that he fell into depression and gave up his airplane invention plans. (— Alan H Jacobs 9/5/06)


Jacobs

1929: Jacobs Aircraft Engine Co, Pottstown PA. 1950: Helicopter Div formed.

104 Gyrodyne 1953 = 1pOH; 350hp Jacobs R-755; ff: 10/x/53. Evolution prototype for 5p helicopter.


Jacobs

Eastman N Jacobs, 148 LaSalle Ave, Hampton VA.

1929 = 1pOhwM; Ace motorcycle engine. The later-renowned NACA scientist designed and built this ultralight in his own backyard and taught himself to fly in it. [361H].


Jacobsen

Arthur Jacobsen, Escanaba MI.

Tin Goose c.1930 = 1pOlwM; 85hp DH Gipsy. Despite its name, it was framed in wood, with plywood covered wings, with only the fuselage covered in duraluminum. Flight tested and won a local air race later the same day (p: Wally Arntzen) [13669]; noted on some registers as Arntzen A.


Jacobson

Joe Jacobsen, St Louis MO.

Imp c.1940 = 1pOB rg; unknown cowled radial. Short-coupled, short-wing racer with I-struts. [NX479W].


Jacuzzi

1920: (Giocondos) Jacuzzi & Bros, 2043 San Pablo Ave, Berkeley CA (established by seven brothers to build propellers under military contract). c.1923: Jacuzzi Bros Propellers, 1450 San Pablo Ave.

  Jacuzzi Reo (Dan Shumaker coll)

J-7 Reo or Rio 1920 = 7pChwM; 200hp Hall-Scott L-6; span: 52'0" length: 29'0". $14,000; POP: 1. First cabin monoplane built in US, planned for use in mail and passenger service, made many successful flights, even attaining 14,000' on a trip to Reno NV. Destroyed in a fatal crash at Modesto CA after a wing failure on 7/14/21.

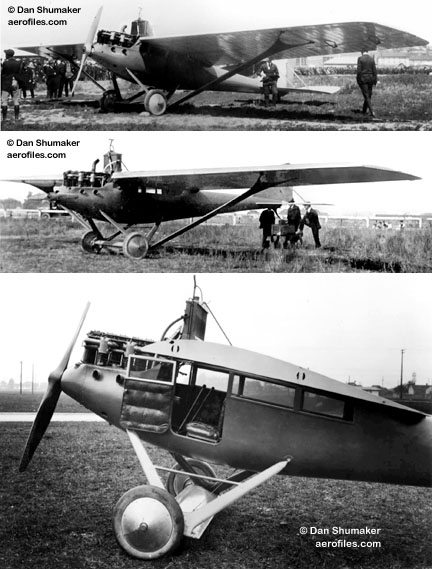

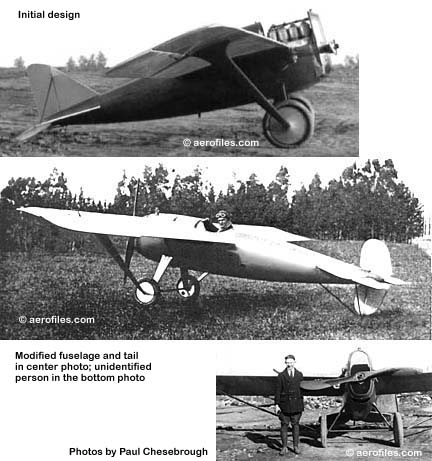

  Jacuzzi (Paul Chesebrough)

Monoplane 1920 = 1pOmwM; 35hp Ford T. Semi-monocoque fuselage. POP: 1, built to investigate laminated wood construction methods. Made a few short flights, but experienced major cooling problems. Repowered in 1922 with 50hp Roberts 4-X and with a redesigned tail, it never flew again—during its first take-off attempt the propeller touched the ground and shattered. Resulting vibration shook the radiator loose in a cloud of steam, and test-pilot Guy Coldwell abandoned the ship as it wobbled to a stop. However, all was not lost—construction experience gained went into their larger monoplane.


Jaffe

Jaffe Aircraft Corp, San Antonio TX.

SA-32T Turbo Trainer c.1990 = Evolved from Swearingen SX-300.


Jameson

Richard J Jameson, Fullerton CA.

RJJ-1 Gipsy Hawk 1972 = 1pClwM; 65hp Continental A-65; span: 18'8" length: 15'8" load: 300# v: 128/115/x. [N71RJ]. Plans were available to home-builders.


Jamieson

William L Jamieson, Evansville IN and Richmond VA.

INFORMATION NEEDED
A 1930 = Unknown type home-built with Johnson conversion [503V].

Speed Wing 1933 = 1pClwM; 600hp Curtiss D-12. Squared fuselage was faired into the rudder. Racer reportedly lacked stability and flew only once, was clocked at 300mph [13141]. Jamieson was killed in air mail duty and his racer was never used.


Jamieson

1947: Charles M Jamieson, Wichita KS. 19??: Jamieson Corp (pres: D M Lackey), Deland FL. 1990: Daytona Aircraft Construction Inc, Deland

D-120, -160, -200, -300 1990 (Daytona) = 2-4pClwM; 120hp Lycoming (D-120), 160hp Lycoming (D-160), 200hp Lycoming (D-200), 300hp Lycoming (D-300); span: 36'0" length: 25'11" load: 1250# (D-200), 1900# (D-300) v: 201/190/59 (D-200), 207/195/67 (D-300) range: 1466 (D-200), 807 (D-300).

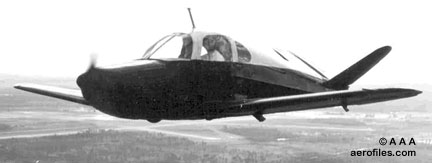

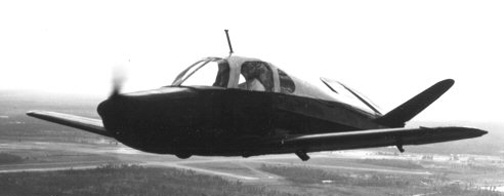

  Jamieson Jupiter (Antique Airplane Assn coll)

J-1 Jupiter 1948 (ATC 2-584) = 3pClwM rg; 108hp Lycoming O-235-C1; span: 29'0" length: 20'10" load: 800# v: 167/150/40. Post-war V-tail, metalized conversion of military surplus Culver PQ-8; also tried with 125hp Lycoming O-290. $2,500; POP: 4; one prototype [N1859M], 3 production [N61468, N41778, N41781].

J-2-L-1 19?? (TC 2A1, A3EA) = 108hp O-235-C1; range: 700 ceiling: 17,000'. No other data found, but an ad suggests a close similarity to J-1.

Take 1, J 1962 = 4pClwM rg; 150hp Lycoming O-320-A3C; span: 29'0" length: 21'6" load: 995# v: 187/158/51 range: 1000 ceiling: 17,000'; ff: 12/13/52. Prototype [N39804]. Produced in small numbers in 1963 as Model J.


Janney

INFORMATION NEEDED

Janney Aircraft Co, Monroe MI.

1916 = No data.


Jannus Brothers

1914: (Antony and Rodger) Jannus Aeroplanes, Battery Ave and Hamburg St, Baltimore MD; 1915: Toledo OH. 1916: Company dissolved to accept positions with Curtiss Airplane Co.

Flying Boat 1914 = 3pOBFb; 120hp Maximotor pusher with chain-driven propeller; span: 45'10" (?>42'10") length: 28'0" load: 900# range: 240. Frithof G "Fritz" Ericson. 25'0" hull. Design based on Benoist 14. POP: 2.

Flying Boat 1915 = 5pOBFb; two 160hp Curtiss V-2; span: 80'0".


Janox SEE Navion


Jarvis

Jarvis Mfg Co, Glendale CA. 1946: Acquired by Volmer Jensen.

VJ-21 Jaybird 1945 = 2pChwM; 75hp Lycoming O-145 pusher; v: 135/110/40 range: 400. Volmer Jensen. Pod-mounted motor nacelle; single gear with retracting outriggers, steel nose skid. Side-by-side cockpit. $2,500; POP: 1. Became Volmer VJ-21.


Jason

INFORMATION NEEDED
XP-52 19?? = Home-built. 1pClwM rg; 125hp Lycoming O-290.

Javelin

Pasadena Aircraft Corp, Pasadena CA.

Californian 1929 = 7pO/ChwM; 220hp (?>300hp) P&W Wasp or Wright Whirlwind. S C Parr. $14,000. Two pilots in side-by-side cockpit; full-width ailerons. [469E].


Javelin

1953: Javelin Aircraft Co, Wichita KS.

Mullens Phoenix 1981 = 1pCmwM; 210hp Lycoming O-540: span: 63'0" length: 27'7". Developed from Bede BD-2 for long-distance record attempt.

Wichawk c.1975 = 2-3pOB; 125-200hp various; span: 24'0" length: 19'3" load: 720# v: x/135/48. Prototype [N71DB] had a 180hp Lycoming O-360; ff: 5/24/71. Dave Blanton. Side-by-side cockpit. Marketed home-builder plans for $125 and kits. POP: reported 18 aircraft and c.300 kits. First unit built from plans ff: 8/2/75 [N29JC]. (Spelling is "Wichawk," according to Jane's, but is also seen as "Witchawk" and "Whichawk.")

T200A 198? = On-station surveillance or TV relay aircraft. 1pCmwM; 200hp Lycoming TIO-360; span: 57'0" length: 26'6" load: 590# v: 218/158/58 range: 3600-4800 ceiling: 40-50,000'.

V6 STOL 199? = 4pChwM; 230hp converted Ford auto engine; span: 32'0" length: 22'4" load: 950# v: 140/130/52 range: 650.


Jayhawk

1929: Jayhawk Aircraft Mfg Corp (fdrs: W D Egolf, D W Eaton), 915 E Lincoln, Wichita KS.

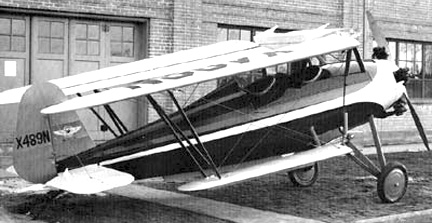

  Jayhawk Mars 2 [X489N]

Mars 2 1930 = 2pOB; 100hp Kinner K-5; span: 30'5" length: 20'6" v: x/120/30 range: 500. Thomas M Finney. Folding taperwings. POP: 2 [X489N, X494N].


J B S

(Jack B) Stinson School of Aviation, 229 E Baltimore Ave, Detroit MI.

Aircoupe 1928 = 2pChwM; 60hp Detroit Air Cat. J B Stinson, as a personal venture for an aborted endurance flight. Built by students, it became the school hack. POP: 2 [X1511] c/n 3 and a 1pOhwM version with Detroit Air Cat, replaced by 60hp LeBlond [X7169] c/n 110.


Jean

Jean Flying Machine Co. No location.

INFORMATION NEEDED
Helicopter 1909 = No data other than this had "rectangular frames with helices inside" and a 2-cylinder motor.

Jeffair

Jeffair, Renton WA.

Barracuda 1975 = 2pClwM rg; 260hp (prototype 220hp) Lycoming; span: 24'9" length: 21'6" load: 505# v: x/200/70. Geoff Siers. Wood and fiberglass construction. Received EAA's Most Outstanding New Design Award 1976. Marketed plans for $125; kits available from dealers. POP: 350 reportedly built by home-builders by 1982.


Jennings

Jennings Machine Works, Uniontown PA

RC Junior 1919 = 1pOB; 35hp Jennings; span: 28'0" length: 16'3" load: 240# v: 74/x/37.

  Jennings Sportplane (ad: 1919 Aerial Age)

Sportplane 1919 = 1pOB; 38hp Ford A; span: 28'0" v: 80/x/37. Advertised as a home-builder project in kit or plan form. The difference between this and RC Junior is unknown.


Jensen

Martin Jensen, San Diego CA. 1928: Jensen Aviation Corp, Lehighton PA. 1929: Jensen Aircraft & Marine Corp, Albany NY. 1930: Beckley College, Harrisburg PA. 1936: Jensen Aircraft Corp, James Island Airport, Charleston SC. c.1949: Jensen Helicopter Co Inc (fdrs: M Jensen & Chandler Hovey), Tonasket WA.

  3-LW [NX18157] (magazine clip)

3-LW 1939 = 2pClwM; 60hp Franklin 4AC. POP: 1 [NX18157].

JT-1 1929 = 2pOB; 100hp Kinner K-5. "JT" for "Jensen Trainer." POP: 1 [281V]. Production of which was halted by the Depression, but design evolved into Sport Trainer.

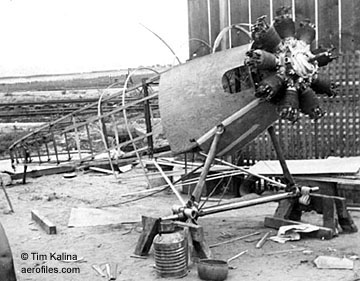

  Jensen June Bug in initial construction (Martin Jensen via Tim Kalina coll)

"Jumping June Bug" 1926 = 2pOB; 220hp Wright J*; span: c.34'0" v: 150/x/38; ff: 5/28/26. Pieced together from parts of Curtiss JN-4, Blackburn Swift, and other scrap-pile gleanings. * The engine itself was assembled from Navy surplus Whirlwind parts, as well, and the aircraft was designed backward from it. Used by Jensen and his wife for a Western barnstorming tour.

Model 21 c.1949 = 2pCH; 125hp Continental C-125; rotor: 27'0" load: 500#. Design evolved into Lift Systems LS-3.

Sport Trainer (Harrisburg) 1930 = 2pOB; 225hp Wright J-6; span: 30'0" length: 22'2" load: 580# v: 120/105/35. POP: 2 student projects under the guidance of Jensen, then head of Beckley College Aviation Dept [X/NR11680, x]. Equal-span wings made from Curtiss JN-4D parts. Original power was 120hp Martin 333; subsequently refitted with 145hp Warner c.1932 (length: 22'3" load: 700# v: 125/105/30 range: 300), and 100hp Ford V-8 in 1936. Scrapped c.1937.


Jensen SEE Volmer


J L B

John L Brown, Momence IL.

1922 = 1pOmwM; chain-driven motorcycle engine. Home-built with semi-cantilever wing.


Joc-Par SEE Parsons-Jocelyn


Johansen

(Walter E) Johansen Aircraft Co, 4556 W 16 Place, Los Angeles CA.

JA-1 c.1934 = 2pClwM; 40hp Continental A-40; span: 35'8" length: 21'7" load: 440# v: 95/85/38 range: 250. Side-by-side cockpit. $1350. Possibly was modified as JA-2.

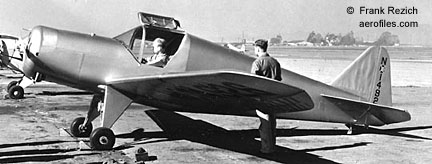

  Johansen JA-2 [NX14926] (Frank Rezich coll)

JA-2 1934 = 2pClwM; 40hp Church; span: 16'0" length: 14'0" v: 95/85/30 range: 250. Pancake wing design (* see following) for slow-speed, stall-proof operation was described, but photo appears to have a rather normal wing (note "C" in tail number X-ed out). [NX14926] c/n 201. Advertised with 40hp Continental for $1,450.

The foregoing is data originally found; however, since then other sources bring new light. JA-1 is noted in Aviation Apr 1937 as "soon to be produced." JA-2 appears in a 1938 Aviation review with a conventional wing: span: 35'8" length: 21'7" load: 430 v: 95/85/35. Speculation with some historians is that only one plane was built by Johansen, [NX14926], and was JA-1, -2, and finally -3 during its evolution. * It is a personal opinion that no "pancake wing" was ever used, and was erroneously mistaken for Johnson Uni-Plane. John W Underwood's "Experimental Light Aircraft" identifies the circular-winged Johnson Uni-Plane (see below and note similar dimensions) as "Johanson JA-2 Uniplane" with a mix-up in spelling its designer's name and somehow applying Johansen's model designation to it. This easily happens in the cloudy world of aviation history and eventually it will all be sorted out. Stand by. (— K O Eckland)

JA-3 1940 = No data, perhaps a design study only; appeared in 1942 Aerosphere showing JA-2 specs and registration, and in an "unusual planes" magazine feature with JA-1 specs and a photo showing a conventional wing, and a tail with JA-2's number [NC14926].


Johns

American Multiplane Co, Bath NY.

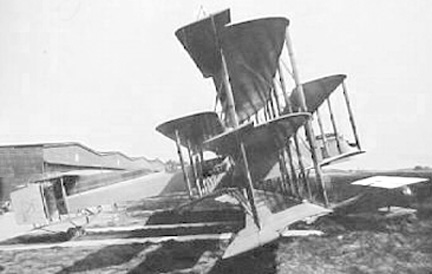

  Johns Multiplane

Multiplane 1919 = Odd visual effect with what appeared to be one-and-a-half biplane fuselages and wings joined in tandem, with a triplane inserted in the middle, all of this propelled by one Liberty motor in the nose and two more as interwing pushers. Herbert Johns. Needless to say, it was huge. After several hopping tests, the septi-wing just barely cleared the ground on its test flight before nosing up and settling ungracefully. When more attempts in 1920 proved conclusively that the machine was not particularly interested in flying, it was scrapped.


Johns

Alvis R "Ray" Johns, Orrstown and Chambersburg PA.

1934 = 1pOhwM with 25hp Harley-Davidson motor, with which Johns taught himself to fly in a series of short hops around the family farm.

Green Demon 1940 = 2pOhwM; 65hp Ford A; span: 32'0" length: 17'0" v: 110/100/60. Empty wt: 550#. The airplane was not registered, but Johns didn't care because he didn't have a license, either.

KJ-1 Air Sport c.1969 = 1pOhwM; 50hp Continental; span: 32'0" v: 135/95/55. Empty wt: 516#. [N3326].

Tornado J-V 1973 = 2pOB; 125hp Lycoming. [N56AJ].

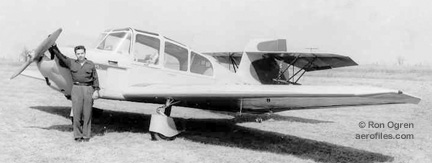

  X-3 Rason Warrior [N1528Y] (Ron Ogren coll)

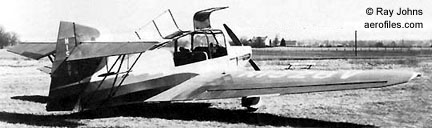

  X-3 Rason Warrior [N1528Y] (Ray Johns coll)

X-3 Rason Warrior 1950 = 5pClwM; 185hp Lycoming O-435; span: 38'0" length: 23'7" (?>23'6") load: 1630# v: 140/135/40. Ray Johns, Paul L Witmer. Bulky-tailed, wide-chord plane with fully-panted wheels. Short fields a specialty, take-off in 350'; convertible to cargo carrier [NC1528Y]. EAA award for Achievement 1963.


Johnson, Johnson Brothers

c.1905: (Clarence, Harry, Julius, Louis) Johnson Brothers Co, Terre Haute IN. 1908: Johnson Aircraft Building Shop.

1908 = 1pOmwM; 40-60hp Johnson V-4 Aero Motor; span: 36'0" length: 34'0". Looked a little like an oversized Blériot of wooden construction. It got a few feet off the ground on its first and only flight, but was judged unsafe.

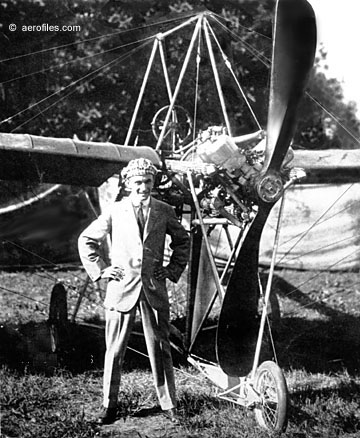

  Johnson Uncertain which of the brothers is shown (Drina Welch Abel coll)

1911 = 1pOmwM; 40-60hp Johnson V-4 Aero Motor; span: 36'0" v: x/60/35; ff: 8/8/11 (p: Lou Johnson). An improved, stronger version of the previous; steel-and-aluminum tube frame with wood ribs and a tricycle gear. Flown with success around the Wabash River country at Menom IN during the summers of 1911-13 by Lou Johnson and exhibition pilot Ross Smith.

Surprisingly little is documented about this innovative little machine that was, on close examination, 20 years ahead of its time. When Americans were building biplanes in the image of the Wright and Curtiss machines, this was a monoplane, likely America's first such. At a time when other ships bore heavy box-radiators whose frontal areas created enormous drag, the Johnsons used lightweight cooling pipes built into a sleek fuselage. While other American planes used landing skids, their ship not only had wheels, it had brakes. When the federal government showed no interest in their novel aircraft engine that outperformed all competing engines in a 10-hour test at Mineola NY, and local businessmen refused venture capital in their aircraft design, and a tornado and ensuing flood destroyed their plant, the brothers took it as a sign and abandoned the flying enterprise to return to building gas engines for small boats instead, soon becoming famous for their line of Johnson Outboard Motors. (— K O Eckland 7/16/01)


Johnson, Johnson-Hartzell

c.1922: (E A) Johnson Airplane & Supply Co, Dayton OH. c.1924: Driggs-Johnson Airplane & Supply Co. 1927: Filed for bankruptcy.

Canary 1925 = 3pOB; 90hp Curtiss OX-5. POP: 1. Possible reworked JN-4D.

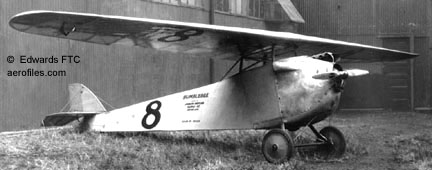

  Johnson Bumblebee US Army [26-205] (Edwards FTC)

DJ-1 SEE Driggs-Johnson DJ-1 for data.

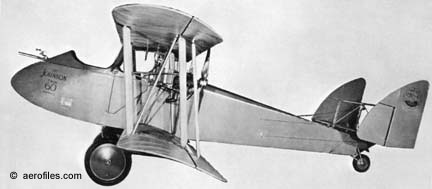

  Johnson Twin 60 (company brochure)

Twin 60 1926 (ATC 3) = 2pOB; two 32hp Bristol Cherub pusher; span: 28'0" length: 21'0" load: 520# v: 75/60/25 range: 480; ff: 12/18/26. POP: 1 [343]; perhaps a second one was built in 1928, registered as such [1064], but no records verify this and it might be a re-register or an uncompleted model. Even with two motors, the Twin 60's gas consumption translated into an economical 24mpg. Destroyed in a crash in June 1927 at Bettis Field, Pittsburgh PA.

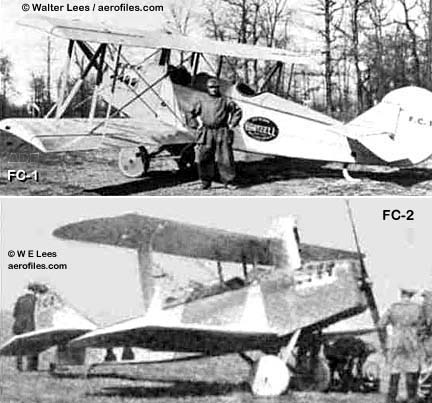

  Johnson-Hartzell FC-1 (Walter E Lees coll)

-Hartzell FC-1, -2 1923 = 2-3pOB; 90hp Curtiss OX-5. Frederick Charavay. Also noted as Hartzell-Johnson. POP: 1 each [2465, x], of which the first was christened Fort Wayne Hartzell. There were other planes registered in the individual name of Hartzell, but with no model designations, and might have been JN-4 conversions.


Johnson

Clarence M Johnson, Detroit MI.

1927 = 2pOhwM; Anzani, replaced in 1932 by Velie M-5; span: 28'0" length: 20'0". [481] c/n JM-1; reg cancelled 7/12/34. Possibly a Pietenpol Air Camper? Design work by Johnson with draftsman Dwight Huntington; Johnson had been a welder with Curtiss-Wright and Detroit Aircraft.


Johnson

Roy Johnson, Seattle WA.

1928 = 2pChwM; Hisso A; span: 37'6" length: 25'6". Likely could be a Standard converted by mechanic Johnson. [7301] s/n 1; reg cancelled in 1940.


Johnson

Jesse C Johnson, Milwaukee WI.

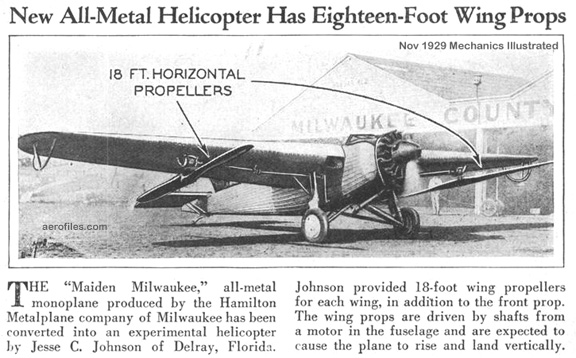

  Johnson-Hamilton (clip: Nov 1929 Modern Mechanix)

1929 = 1p gyroplane/helicoplane. Rotor-equipped Hamilton H-18 Metalplane had 9' propellers mounted horizontally under its wings. Johnson's address is given as West Palm Beach FL, but tests were performed in Milwaukee: "The craft took off after a short run of 75'. In the helicoplane mode, power to the tractor propeller was halved and the lateral screws started. The combination produced a steep angle climb. Johnson called the tests '90 percent perfect'."


Johnson

Richard B Johnson, 826 S Wabash Ave, Chicago IL.

  Johnson Uni-Plane [X13680] (Dan Shumaker coll)

Uni-Plane 1934 = 1pO flying wing; 41hp Church Marathon; span: 14'0" length: 16'6" load: 270# v: 63/59/23. 3'0"-thick circular wing built around a Church Mid-wing fuselage; original version had a simplified two-control system with no ailerons. Twin tails on prototype were replaced by a single Alexander Eaglerock tail. POP: 1 [X13680]. US patent #1,887,411 awarded to Johnson on 11/8/32. Uni-Plane apparently had trouble feeling at home in the air, and for two years made more than 100 short, stright-line flights, many of which ended in one form of crash or other. Offered to Chicago meat packer as a "flying ham" advertisement during the World's Fair, but rejected after it crashed on take-off in Aug 1934. In 1936, a final and spectacular crash slammed the lid on things, and Johnson traded what was left for his hangar rent.


Johnson

Bemus Johnson. No location.

c.1935 = 1pO wingless airplane that a picture caption in Jan 1936 Air Trails explained: "... employs airfoil sections rotating on belt above fuselage for lift, and skirt for banking." Judging from the picture, it seems that a series of airfoils were rushed forward by the belt, then carried back again inside the fuselage for a new run, much like steps on an escalator. Why didn't anyone think of that before? Concluding caption: "Engine failure delayed tests." Perhaps mercifully.


Johnson

Buford E Johnson, Portland OR.

1935 = 2pOM; 65hp Lambert-Velie M-5. [15514] c/n 1. Sold 11/9/41, reg cancelled 7/19/48 when "owner failed to comply with CARs."


Johnson

Carroll L Johnson, Madison WI.

A 1935 = 2pOM; 40hp Ford A. [14823].


Johnson

Laird Aircraft Co & Harold Johnson, Dayton OH.

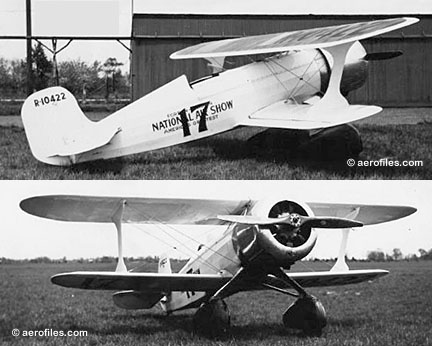

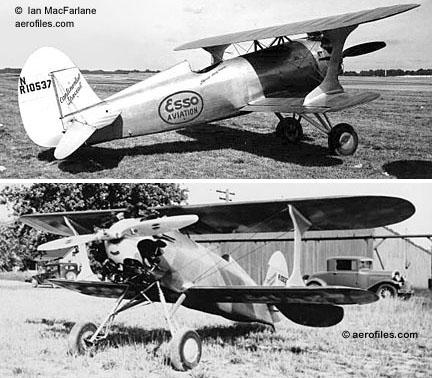

  Johnson Special [NR10537] (Ian MacFarlane coll)
  Johnson-Laird LC-DC conversion from Derby Racer [R10422]

Continental Special 1937 = 1pOB; 220hp Continental. Laird LC-DC modified as I-strutted aerobatic plane for use in Johnson's National Air Shows touring group. POP: 2 [NR10537] The Rocket and [R10422].


Johnson

A C Johnson, Long Beach CA.

1941 = 2pClwM; two 80hp Johnson-designed motors in tandem in a split nacelle, facing one another. Almost a low-winged Seabee look to it, little was documented about this radical tractor-pusher design, and the theory of two opposite-turning propellers face-to-face a foot apart leaves one wondering.


Johnson

Robert Johnson, Inglewood CA.

JR-1 1947 = 1pCmwM; 85hp Continental; span: 15'2" length: 15'9". Midget racer was destroyed in a crash July 1947.


Johnson

1941: (Rufus S "Pop") Johnson. 1946: Rocket Aircraft Sales Corp, Henderson TX. 1945: Aircraft Inc or possibly Aircraft Mfg Co (qv), Fort Worth TX.

Bullet 1945 = 2pClwM rg; 125hp Continental; span: 28'0" length: 21'1" load: 628# v: 160/x/48 range: 600. Ultimately became 4p Regent Texas Bullet. SEE Pop Johnson and His Rocket for the rest of the story.

Rocket 125 1942 = No data.

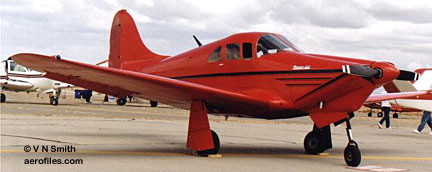

  Johnson Rocket 185 [NC90204] (V N Smith)

Rocket 185 1945 (ATC 776) = 3pClwM rg; 185hp Lycoming RO-435; span: 30'10" length: 21'10" load: 775# v: 185/160/60 (?>207/185/x) range: 690; ff: 8/x/45. R S Johnson. $5,900; POP: 19. Two-control system, with rudder used only in taxiing and take-off. Design became Regent Rocket.


Johnson

Luther Johnson, Greenville NC.

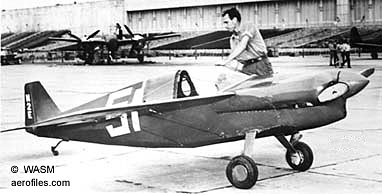

  Johnson Special [N2E] (WASM coll)

Special 1948 = 1pCmwM; 85hp Continental C-85; span: 17'4" length: 16'4". Luther Johnson. POP: 2 midget racers Idle Hours [N5E] and Carolina Aviation Betty Jo (p: Charles Barton) [N2E]. Appeared in 1949 races as Sheldon Special (p: L C Sheldon).

Special 1949 = 1pClwM; 85hp Continental C-85. Midget racer designed and built by Dave Long as a Midget Mustang (qv). Metal fuselage. [N5111H].


Johnston

Stanley Johnston, Wallacetown Ontario.

Missing Link 1926 = No data; 2-cyl Lawrance. First of several homebuilts by Johnston.

  Johnson Special [CF-RDH] (magazine clip)

Special 1962 = 1pClwM; 108hp Lycoming O-235C; length: 22'7" v: 115/95/40; ff: 5/x/62. Modified from Long Wimpy and Taylorcraft BC-12. [CFRDH] c/n 1. Was 14 years in construction, cost: $2,500.


Johnston

Richard Johnston, Tucson AZ.

Jeaco 2 1955 = 1pChwM; 80hp Continental A-80; span: 21'10" length: 18'0" v: 100/90/x. Empty wt: 622#. Constructed at El Centro CA. [N17K].


Johnstown

1912: Johnstown Monoplane Co, Johnstown PA.

1912 = No specs or data found, only a news item that "a 100hp Gnome motor had been ordered." Incorporators were C E Dover, A L Gettys, Carl Heinz, A E Hiteshew, H E Slick.


Jonas

Gerald Jonas, San Francisco CA.

Hummingbird 1977 = 2pCmwM canard; 78hp VW Revmaster; span: 20'4" length: 10'0" load: 415# v: 240/220/64. First flight was expected to take place in Oct 1977, but is unrecorded if it ever flew.


Jones

Harry Martin Jones, Providence RI and Quincy MA.

1914 = 1pOBFb; 75hp Sturtevant chain-driving two three-bladed pusher propellers; ff: 6/9/14. Described as a Jones-designed boat hull "with Wright wings." Destroyed in a crash at Narragansett harbor on 9/9/14.

1915 (Quincy) = 3pOB; 80hp Sturtevant. Fuselage-type tractor, also "with Wright wings." Sucessful as a trainer in Jones' flight school operations, but it, too, finally crashed.

1916 = OBFb; 80hp Sturtevant pusher. Little known about this one, but the only photo extant showed it to be a very handsome, rakish redesign of his 1914 flying boat. After this one, Jones quit building aircraft and went to work at Sturtevant Co as Grover Loening's assistant.


Jones

George W Jones, 924 Camp St, Indianapolis IN.

INFORMATION NEEDED
Suicide Buggy #1 1933 = 2pOlwM; span: 22'0" length: 17'0" v: 110. A letter with a construction photo published in Feb 1933 Popular Aviation explained: "I am the same little colored fellow who wrote your mag a short time ago ... I work for an undertaker, although I prefer aviation and expect to make it my life's work if I ever get into it ... We are all through and ready to put [the plane] together at the airport." Aerofiles welcomes more information about this home-built by Jones and his "two pals" with such a bleak and, hopefully, not predictive name.

Jones

1937: (Ben) Jones Aircraft Co Inc, Schenectady NY, on acquisition of rights and inventory from Metropolitan Aircraft Corp; 1938: Saratoga NY. 1938: Sold assets to White Aircraft Co, Leroy NY.

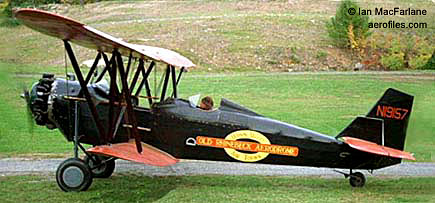

  Jones New Standard D-25 at Old Rhinebeck [N19157] (Ian MacFarlane)

D-25 aka Jones New Standard 1937 = New Standard D-25 from Metropolitan Corp inventory converted to crop duster. POP: 5 [19155/19157, 19197/19198], plus five more unassembled airframes and tooling sold to White Co.

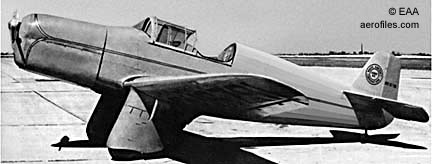

  Jones S-125 [X16791] (EAA)

S-125, -150 1937 = 2pClwM; 125hp Menasco C-4; span: 31'0" length: 24'2" load: 875# v: 151/136/x range: 730; (as S-150 with 150hp Menasco C-5). Canopied tandem cockpits; full-panted gear. POP: 1, badly damaged in a crash on its first test flight [X16791]. Rebuilt by White Co in 1938, and rechristened White S-125. The ultimate disposition of this rather handsome plane is unkown.


Jones

Howell "Nick" Jones, Augusta GA.

Half Fast c.1965 = 1pCmwM midget racer. Took third place in finals at 1966 Los Angeles races. Destroyed in midair collision, from which both pilots escaped. POP: 1 [N4762S].


Jordan

Linwood F Jordan/20th Century Aerial Navigation Co, Portland ME.

1914 = An oscillating-wing triplane, probably one of the last bird imitators. Unknown if this creation, named "Maine Dirigo" on its tail in a drawing, ever got off the ground, or even the drawing board.


Joslin

F A Joslin, Beaufort SC.

Chiisai Tanyoki 1969 = 1pClwM. Two-third scale Mitsubishi A6M5 WW2 fighter.


Jovanovich, Jovair

Helicopter Engr Research Corp (pres: D K Jovanovich), Boulevard Airport, Philadelphia PA (company principals were formerly with Piasecki Co). 1951: Acquired by McCulloch Motors Co. 1957: Jovair Corporation.

  Jovair 4E Sedan [N4068K] (Jovanovich via Ron Dupas coll)

4A, 4E Sedan c.1960 = 4pCH; 210hp Franklin 6A-335; rotor: 23'0" length: 18'0" load: 840# v: x/90/0 range: 180 ceiling: 8000' (data for 4E). Twin tandem rotors. 4E was developed from JOV-3, 4A was 2p flying-framework version for agricultural and training duties. Program taken over by McCulloch in 1969.

J-2 1962 = 2pCAg; 180hp Lycoming O-360 pusher; rotor: 27'0" length: 16'0" load: 549# v:125/110/30 range: 300. Three-bladed rotor; twin booms, twin tails. Produced by McCulloch from 1971, then by Aero Resources Inc from 1974 as Super J-2. Prototype [N4068K].

JOV-1 1946 = 2pCH; Lycoming; rotor: 26'0" load: 480 v: 100/x/0 range: 100.

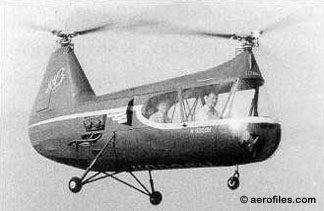

  Jovanovich JOV-3 [N9000H] (Jovanovich)

JOV-3 1949 = 2pCH; 100-125hp Franklin 4V; rotor: 18'6" length: 26'4" load: 423# v: 100/73/0 range: 138. D K Jovanovich; ff: 3/20/49. Twin three-bladed rotors fore and aft; tandem seating. Became McCulloch MC-4 in 1951 [N9000H].


Joy SEE Franklin


Joy

(Ervin & Lyle) Joy Aircraft Co, 6359 N Lombard St, Portland OR.

J 1933 = 2pOhwM; 40hp Salmson AD-9. POP: 1 [12788] c/n 1; undescribed, but likely was the prototype of JX.

JX 1935 = 2pOhwM; two 40hp Salmson AD-9; ff: 4/23/38 (p: Sidney Monastes). Fishlike, wingless creation referred to as a "flying flapjack," with underslung motors, didn't make it past the barbed-wire fence at the end of the airport. Monastes was unhurt, but that couldn't be said for his flapjack. POP: although this had c/n 5, registration concurrency with model J suggests there was only 1 built [12787].


Junglas

Vincent J Junglas, Rensselaer IN.

1935 = 2pOM; 35hp Ford T [15199].


Junkers-Larsen

Junkers-(John M) Larsen Aircraft Corp, NY.

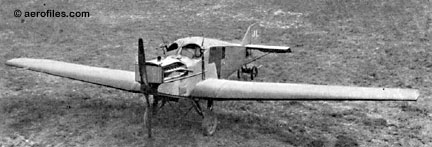

  Junkers-Larsen JL-6 (1922 Aircraft Year Book)

JL-6 1920 = 5-7pOClwM; 185hp BMW; span: 48'7" length: 28'9" (?>31'7") v: 101 ceiling: 16,600'. All-metal. License-built by Junkers of Germany. POP: 8 to civil and air mail companies, 3 to USN [A5867/5869, A6696] and 2 to USAAS [AS64121/64122] for testing at McCook Field—no military designations were assigned to USN and USAS planes. Set a world endurance record on 12/29/21, of 26h:19h:07s (p: Lloyd Bertaud, Eddie Stinson) over Long Island NY; plane carried 350 gallons of gas and 23 gallons of oil for a total weight of 5600#, and the flight was made in a snowstorm.

  Junkers-Larsen JL-12 (Aviation via Joe Martin)

JL-12 192? = 2pClwM; 400hp Liberty 12; span: 49'0" length: 32'0" load: 2000# v: 140/x/55 range: 400. A novel approach to troop strafing, the armor-plated plane sported 30 downward-aimed Thompson .30cal submachine guns fired selectively by the gunner, each stocked with 300 rounds of ammunition. POP: 1, created no interest with the military.


Jupiter

Kenneth Champion, Gobels MI.

J-1 1958 = 1pClwM; 65hp Continental; span: 21'0" length: 17'4" load: 283# v: 160/120/58 range: 300 (?>420). Wood construction, laminated-fiberglass covering. Won EAA Design Award 1959.

  Jupiter K-2 [N1044Z]

K-2 1963 = 2pClwM; 125hp Lycoming O-290-G; span: 22'0" length: 17'4" load: 540# v: 160/140/55 range: 400. Skin-stressed laminated-fiberglass construction. [N1044Z].


Justacrate SEE Stafford (NC)


"It will take much longer [than the automobile] to make them [airplanes] familiar to everyone, yet nobody should lose sight of the fact that the Age of Flight is really here, that the man-bird is fledged at last, and already on the wing." — Editorial in Outing, 1909



venlafaxine hcl 75 mg
