North American NA-260 (Pacific Airmotive Corp)

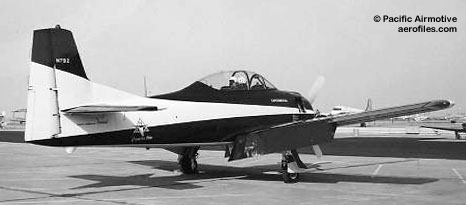

Nomad Mk I, Mk II 1958 = Conversion of surplus North American T-28 to a general-purpose plane. Mk I had 1300hp Wright R-1820-56S; Mk II had 1425hp R-1820-76A; both had three-bladed props; (data for Mk II) span: 40'1" length: 32'0" load: 1401# v: 381/203/83 range: 1,180 ceiling: 36,480'. POP: unknown.

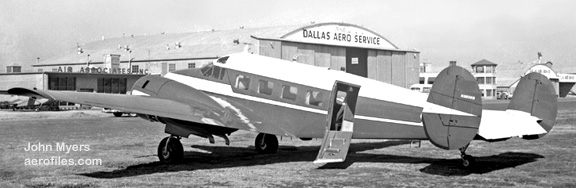

  PAC Super 18S [N36068] (John Myers coll)

Tradewind 1962 = Custom conversion of Beech D-18S/C-45 to 5-11p executive transport. Two 450hp P&W R-985-AN-4; span: 47'3" length: 37'9" load: 2200# v: 240/219/78 range: 1110-2000 ceiling: 17,000'. Wide windshield, tricycle gear, redesigned nose and wingtips, added tanks, deluxe interiors. POP: unknown.

1925 = 2pChwM; 90hp Anzani; span: 36'0" length: 23'9" load: 570# v: 90/75/30. Frank R Seesock. Seen as New Pacer after 1928.

  Pacer (ad: Aero Digest)

1929 = 4pOhwM; 150hp Hisso A; span: 36'6" length: 22'9" load: 1200# v: 138/110/42 range: 750. Frank R Seesock. Two side-by-side cockpits. Carried 1491# in one test with a 1000-fpm rate of climb. POP: unknown, [X1928, et al]; one with 200hp Wright J-5 (v: 147/120/42) [NR786Y] c/n 2 in 1930; another as [X749Y] c/n 101, with 300hp Wright in 1932 (odd sequence of c/ns is unexplained).

Special 1928 = Type unknown; 225hp Wright J-5. [X7269] c/n 6.

  Pacific Hawk (Aviation via Joe Martin)

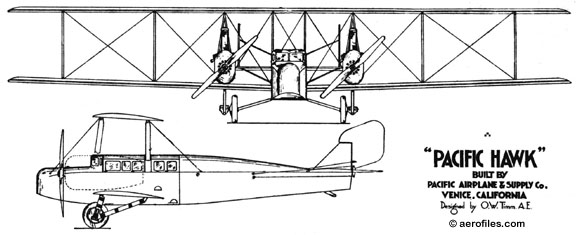

  Pacific Hawk 2-view (Aviation via Joe Martin)

Hawk 1920 = 6pO/CB; two 90hp Curtiss OX-5; span: 52'0" length: 32'0" (?>29'0") load: 1320# v: 82/x/45 range: c.440; ff: 9/x/20 (p: Frank Clarke). Otto Timm. Huge transport, christened The Skylark, was repowered with 200hp Hall-Scott L-6 when the "Oh-by-Five" motors proved insufficient for the task. Last seen at Clover Field, Santa Monica, in 1923. Some references to it being also called "Arrow" seem to stem from an ad shown in Dave Hatfield's "Los Angeles Aeronautics" for an Air Rodeo at Glendale Airport, 3/17/23, which mentions an 8p Arrow transport built by (John) Rogers Construction (dba Pacific)—SEE Airline Arrow.

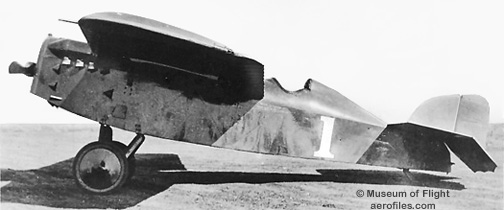

  Pacific-Standard C-1 (Museum of Flight coll)
  Rogers C-1 Drawing (1922 ad: Valspar Co)

-Standard C-1 aka Rogers C-1 1921 = 1pOmwM; 90hp Curtiss OX-5; span: 23'3" length: 19'6". Otto Timm; built by (John W) Rogers Aircraft Co. Unrecognizable as being modified from a Standard J-1, flown by Emory Rogers until a fatal crash on 11/27/22. Won 1921 Curtiss Cup race (v: 137.41).

A 1930 = 2pOB; 60-90hp Velie or 60hp LeBlond 5D; span: 27'0" length: 20'0" v: 120/x/26. Jeff Bauer (unverified), also seen listed as Brawner-Bauer. Planned for forestry service work. Extreme stagger, gap was 44"; all-tube controls. Constructed at San Francisco Bay Airdrome in Alameda. POP: 1 [X501E] c/n 100. Reg cancelled 12/8/30.
Quoting from a letter (to CAA?) 3/1/30, "It has not been test-flown. Our aim is to construct a ship exceptionally strong and rugged, with an extremely low landing speed and quick take-off, to be used in fire patrol of forests and for rental purposes." (— John M Jarratt 8/25/03)

A 1948 = 1pClwM; 85hp Continental C-85. Midget racer Miss Nashville (p: Al Bennyworth] [NX66311]; fastest race 139.53 mph (1948). Built by Garland & Associates. Dismantled c.1949, parts used in subsequent racers.

B 1948 = 1pClwM; 85hp Continental C-85; span: 13'0" length: 16'0". Midget racer Rebel Raider, destroyed on a test flight (p: Garland Pack uninjured) [N97M].

C 1948 = 1pClwM; 85hp Continental C-85; span: 16'0" (?>17'2") length: 16'10" v (race avg): 191. Midget racer Li'l Rebel (p: Jimmy Wilson] [N66317]. Rebuilt as Wilson Li'l Rebel after being damaged.

  Pack D Stars & Bars [N66319] (K O Eckland coll)

D 1950 = 1pClwM; 85hp Continental C-85; span: 14'8" length: 17'0" v: x/175/x. Midget racer Stars & Bars aka Johnny Reb (p: Joe Magnano, Al Bennyworth) [N66319]; damaged in mid-air collision during 1950 race and rebuilt.

E 1959 = 1pClwM; 85hp Continental C-85; span: 13'0" length: 16'0" v (fastest race): 188. Midget racer Grey Ghost, alias Little A-Go-Go, alias Little Bit [N211P]. Raced 1959-69.

1919 and 1920 ultralights ascribed to Packard Co were in fact designed by Etienne Dormoy and built as off-hours experiments by Dormoy (qv) and his friends while employed there.

  Packard A (Aviation via Joe Martin)

A (1-A) 1919 = 2pOB; 160hp Packard 8; load: 647# v: 102 ceiling: 19,500'. Packard's entry, featuring a self-starter, was planned for a civil market that failed to develop; POP: 1 [707] c/n 1. A 2pOB with 200hp Packard-Liberty 8 found in the registers might be this ship, but it was not specified as actually a Packard Co product — use of a Packard engine certainly hints at it. The registry shows several private owners in Mt Clemens and Saginaw but no other data.

  Packard-LePere LUSAC 11 (USAAC via Jay Miller coll)
  Packard-LePere LUSAGH 11 [AS40021] (Skyways)

-LePere LUSAC-11, LUSAGH-11 (McCook Field Engr Div) 1918 = Fighter. 2pOB; 425hp Liberty 12; span: 41'7" (?>39'0") length: 25'3" (?>25'5") v: 133/118/50 range: 320 ceiling: 20,200'; ff: 8/x/18 (p: Lt de Marmier). Dwight Huntington, Capt Georges LePere. Plywood fuselage, box-type wing struts. First US aircraft with a turbo-supercharger, and first to leave a vapor trail (SEE Chronology, 2/27/20). POP: 2 prototypes and 24 production models [AS40013/40023, AS42129/42142, AS42151]; orders for nearly 3,500 were cancelled at the Armistice. [AS40021] modified as 1p LUSAGH-11 with longer wings, a canopied cockpit, and 475hp Bugatti 16 (as LUSAGH-21 at McCook Field); span: 47'1" length: 24'4". (LUSAC = LePere US Army Combat; LUSAGH = LePere US Army Ground Harassment.)

-LePere LUSAC-21 (McCook Field Engr Div) 1919 = LUSAC-11 refitted with 420hp Bugatti 16; length: 27'1". Gross wt: 4485#. POP: 1 prototype [AS40023].

-LePere LUSAC-25 1919 = Unrecorded development of LUSAC-11. POP: 5 known [AS40025/40029].

  Packard-LePere LUSAO 11 [SC40012] (Skyways)

-LePere LUSAO-11 1919 = High-altitude long-range observation for Signal Corps. 3pOT; two 400hp Liberty 12 with four-blade props; span: 54'6" length: 38'2 load: 3122# v: 112/106/60 range: 475 ceiling: 17,300'. POP: 1 prototype [SC40012]. (LUSAC = LePere US Army Observation.)

1909 = 1pOB; two-cycle Light rotary. Essentially a Blériot XII rebuilt with a biplane wing and interplane ailerons, designed by the founder of Pagé aviation mechanic training schools, and author of several popular technical aviation books c.1918-35.

Texan 1957 = 1pChwM; 65hp Continental A-65-8; span: 24'0" length: 17'9" load: 158# v: 115/95/50. [N2747A].

c.1931 = M; 80hp Palmer; span: 40'0". Henry Hunt. Built by Hunt for use as a test bed for the Palmer motor, and apparently bought by him. [802N] c/n 1. SEE ALSO Hunt (Fiskeville RI) as an alliance that has yet to be figured out.

P-3 1929 = Monoplane with 80hp Velie M-5. [X/NC69N]. Any relation to the Boston Palmer is also unknown, but possible. John M Jarratt finds no reference to Pan-American Corp.

1910 = Newpaper reports describe this as an "auto-plane" with folding wings, perhaps the first of its type. Two 35hp Adams-Farwell rotary motors geared together so that "if one stops, the other keeps the propeller moving while the first acts as a flywheel." The two motors also revolved in opposite directions to neutralize the gyroscopic effect—quite an innovation, considering the year. Reports failed to mention if it ever flew, and no pictorial matter was uncovered to provide a better description.

c.1962 = 1pClwM; 125hp Lycoming O-290. [N40J].

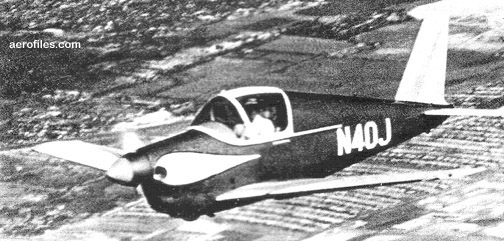

  Palomino [N40J] (clip via Bernhard Klein)

c.1965 = 2pClwM; 150hp Avco Lycoming O-320; span: 28'2" length: 20'7" load: 710# v: x/167/70 range: 575. [N40J]. Rebuild of the 1962 single-seater. Marketing of this handsome, all-metal tandem-seater was moderately successful.

PAN 1987 = 2pCB; Franklin 6V-335. EAA Champion Custom-Plans Built award in 1990. POP: 1 [N11ZL] c/n ZL-1.

From my HOAE compilation, the 6V-335 (O-335 in my notation) was built as a vertically-mounted helicopter engine delivering 200-210hp at 3100rpm. I have no idea what would have been involved in the conversion to horizontal operation. (— Jack Erickson 11/5/02)

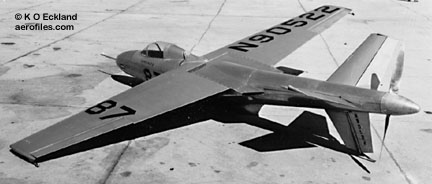

  PAR Special [N90522] (K O Eckland coll)

Special 1950 = 1pClwM; 85hp Continental C-85 pusher; span: 20'0" length: 20'0". George Owl. Variable-incidence wing. Midget racer Mixmaster with Y-tail and aft-mounted prop [N90522]. After unsuccessful competitions, it was rebuilt in 1952 as Trefethan TRW Special.

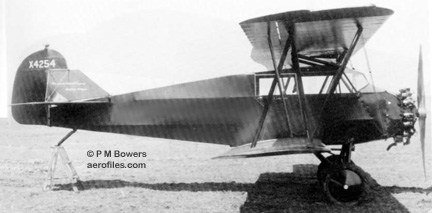

  Paramount Cabinaire 110 Prototype [X4254] (Peter M Bowers coll)

Cabinaire 110 1929 (ATC 2-164, 2-165) = 4pCB; 110hp Warner Scarab; span: (upper) 34'8" (lower) 29'0" length: 23'9" load: 908# v: 103/90/38 range: 465 ceiling: 12,000'. Walter Carr. $6,750; POP: 7 [NC17M, NC387, NC587, NC551V, NC7930/7931]; prototype [X4254] c/n 2, used many Travel Air parts; cabane-mounted upper wing. No records or registration were found for c/n 1, but it is generally assumed to have been rebuilt from a Travel Air. [NC587] c/n 6 repowered with 150hp Hisso in 1936. (2-164) and (2-165) were 4p and 3p approvals respectively.

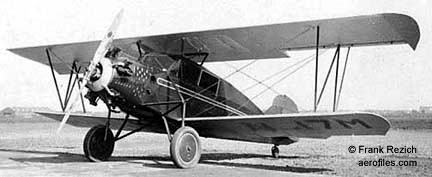

  Paramount Cabinaire 165 [NC17M] (Frank Rezich coll)

Cabinaire 165 1930 (ATC 265) = 4pCB; 165hp Wright J-6; length: 24'7" load: 1054# v: 120/105/40. $7,500, $5,750 in 1931; POP: 1 [NC17M] c/n 7, modified from Cabinaire 110.

My father at one time owned the burned remains of [NC17M] (it caught fire during restoration in the '60s), the only surviving Cabinaire. After he sold the plane it was finally restored in the '90s. Greg Herrick purchased it in 1997, and while we were flying it from FL to MN, an engine failure stopped our trip near Zebulon GA. The Cabinaire is once again being restored by Nathan Rounds in Zebulon. (— Brent Taylor, AAA 10/12/00)

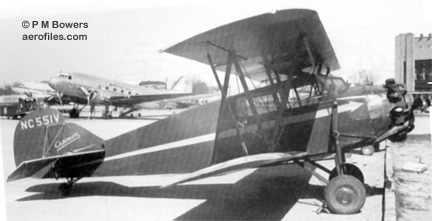

  Paramount Cabinaire A-70 [NC551V] (Peter M Bowers coll)

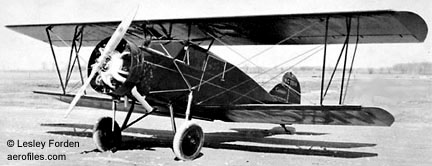

  Paramount Cabinaire A-70 [NC551V] (Lesley Forden coll)

Cabinaire A-70 1930 (ATC 2-233) = 4pCB; 165hp Continental A-70 and data similar to 165. POP: 1, modified from Cabinaire 110 [NC551V] c/n 9.

  Paramount Sportster [495K] (1931 Aero Digest)

Sportster 1931 = 2pOlwM; 110hp Warner Scarab; span: 29'0" length: 22'0". Ralph Johnson. Side-by-side cockpit; looked like long-wing Kinner Sportster. $4,985; POP: 1 [495K]; ff: 4/10/31 (p: Stanley Hammond). As a floatplane, it crashed on 5/16/31, killing Behse and ending Paramount Corp.

Parisano Paraplane Drawing (ad: 1916 Flying)

Paraplane 1916 = 2pO special*; two rotaries in tandem. *A genuine oddity with a winged, parafoil-type arrangement over a framework fuselage on a four-wheel cart. From Sep 1915 ad: "These machines are standard in every respect, and of extra strong constructon, designed to meet the severest military requirements—can be be supplied with changeble angle of incidence wings. Speed range, 40 to 85 miles per hour. Climb with full military load 600 feet pr minute." A descriptive "Armored Military Tractor Biplanes" suggests a much different design than shown, likely a biplane, and "these machines" indicates ambitious production plans.

1911 = 1pOB; 60hp Emerson; span: 14'0". Built from what materials were on hand or found locally, it sported a landing gear of four motorcycle wheels, plain galvanized wire helping to brace its structure, and some gas pipe for parts of its frame. Quite ahead of its time, however, was Parker's smoke chamber, with hand-operated bellows, built to study airflow across model wings. After incorporation with a couple dozen townsfolks, completion of the airplane mid-year, and a shaky maiden flight to 20' high and 1,500' in length (during which Parker also hurriedly learned to fly) followed by a crash-landing, an exhibition tour was planned. Those plans were cut short when a second flight also ended in a crash with more severe damage. With funds running low and no signs of any income on the horizon, and the reluctance of the plane to leave the ground in further modifications and attempts over three more years, the company was dissolved in 1914. Yet Parker is credited by many as the first to fly in Utah, which is contested by supporters of Lagar Culver (qv) for the honors.

Pusher 1912-1914 = Manufacturer of personal and exhibition biplanes, stressed for competition and aerobatics; principal power was 50-80hp LeRhône rotary. [NX62E] was a personal plane flown by Parker during his years as sales representative for Phillips Petroleum Co (later manager of Aviation Dept); was active into the 1960s. Rebuilt and upgraded many times over the years; mid-wing ailerons were replaced by trailing-edge ailerons. Parker had other pushers along the way for exhibition flying, as well [NR8Y (90hp OX-5), N66V, N4161K (80hp LeRhône)]. The latter was the most recent addition (c.1955), registered as Parker-Curtiss, with a rebuilt 90hp Curtiss OX-5. While the Curtiss name is often attached to Parker's products, and he admitted to initial design influence to some degree, he was in fact quite vocal about his planes being his own creations, noting that anyone serious about doing "loops and fancy flying" [his terms] in the 'teems would never use a Curtiss pusher because of the weakness of its "bamboo outriggers and other frail parts." Parker was still flying two of his originals in the '50s and '60s on tours for Phillips.

1921 = 3pOB advertised as being constructed, as well as newspaper articles, but no data were found except that Parker left town that year apparently without building any plane.

Pal 1929 = 2pOB; 65hp LeBlond. [571] c/n T-3.

Jeanie's Teenie 196? = 1pOlwM: 36hp Volkswagen; span: 18'4" length: 12'8" load: 250# v: 110/90/x. POP: 1 prototype; several thousand sets of plans reportedly sold to home-builders.

Teenie Two, Double Teenie 1969 = 1pOlwM; 40hp Volkswagen; span: 18'0" length: 12'10" load: 280# v: 120/95/x range: 400. Improved version of Jeanie's Teenie. Plans and component kits were available. Double Teenie was 2p version.

Tin Wind 1962 = 2pCmwM; 125hp Lycoming O-290G; span: 21'0" length: 18'0" load: 600# v: 180/160/55. All componenets made from flat alumninum stock; cost for prototype was about $500, less motor. Marketed plans for home-builders. [N348L].

  Parks P-1 [NC362K]
  Parks P-1 [NC376K] (Frank Rezich coll)

P-1 1929 (ATC 179) = 2-3pOB; 90hp Curtiss OX-5; span: 30'1" length: 24'1" load: 812# v: 100/85/37 range: 340. A duplicate of Fairchild KR-31, but with a chin radiator. Built to replace Travel Airs used at the subsidiary Parks Air College. $3,165; POP: 45; prototype [10008]. [X289W] used to test the feasibility of a large, built-in "planechute" that could be released in emergencies to float the aircraft to the ground. Photos show it in operation, with apparent success, but results of testing is unknown.

P-1H 1932 (ATC 2-428) = 100hp Kinner K-5. Became Hammond 100.

  Parks P-1T (Frank Rezich coll)

P-1T 1929 (ATC 2-506) = 115hp Milwaukee Tank.

P-1X 1930 = 3pOB; 90hp Curtiss OX-5, as Detroit P-1-X [289W] c/n 19911.

  Parks P-2A [NC499H]

P-2A 1929 (ATC 276) = 165hp Wright J-6; span: 30'0" length: 23'0" load: 897# v: 120/100/45 range: 500. $6,350; POP: 11 [NC480M, NC499H, NC502N, NC902K, NC965K, NC8487, NC8490/8492, NC967K/968K]; marketed as Detroit-Parks P-2A after merger with Detroit Corp and, later, as Ryan Speedster.

P-4 1929 = 6pChwM; 300hp Wright R-975. [X8384].

P-1, P-2 1947 = 1pOlwM; 65hp Continental C-65. POP: 2 midget racers [N2E, Nx], the first of whose registration was transferred, after it disappeared c.1967 over the Gulf of Mexico, to Parks P-3. There is registration confusion in [N2E], which appears in 1948 as midget racer Sheldon (or Johnson) Special, as well as in model numbers similar to those of Parks Aircraft Co.

P-3 1963 = OB with 125hp Lycoming; span: 19'0" load: 263# v: 135/125/55. POP: 1 [N2E], reg transferred from P-2.

1912 = 1pOB; 60hpo Hall-Scott A-2; ff: 2/17/12. Modified Wright B for tours with the Wright Exhibition group. (Ref: Aero 142:23)

Solo Sport 1933 = 1pOhwM; 65hp Lambert; span: 27'0" length: 17'11" v: 120/100/50. Originally had 60hp Velie. [12729]. One other appears as Cardoza-Parso PC-1 [10414] c/n 1, which might be Mr Cardoza's home-made version, but details were not found.

D-295 1974 = Unequal-span variant of PJ-260 with 295hp Lycoming GO-480-G1D6; span: (upper) 27'0" (lower) 23'9". Built for E Mahler & L Webber.

  Joc-Par PJ-260 [N40304] (Avn Weekvia Ron Dupas coll)

PJ-260 1960 = 1pOB; 260hp Lycoming GO-435-C2; span: 27'0" length: 21'0" load: 700# v: 170/138/52 range: 500 ceiling: 24,000'; ff: 7/28/60. Nicholas D'Apuzzo. POP: 1 prototype [N40304] designed and built at the request of Jocelyn as an exhibition aircraft for world champion aerobatic pilot Parsons at competitions in Spain, and reportedly 7 amateur-built planes up to Feb 1974. Also seen recorded as Joc-Par.

Besides these recorded individual creations, the P&K were responsible for many conversions and modifications of surplus WW1 aircraft registered with civil numbers.

  Partridge-Keller #1 with Joe Best (Drina Welch Abel coll)

#1 1913 = 1pOB; 60hp Kirkham, built for sportsman-pilot Joseph Best as the team's first effort. Featured Wright two-stick controls and wing-warping.

  Partridge-Keller Bi-Plane (Drina Welch Abel coll)

Bi-Plane aka "Looper" 1914 = 2pOB; 80hp Gnôme rotary, later 80hp Smith 6-cylinder radial. Uncovered fuselage at first, later covered with fabric. Specially built for Katherine Stinson for her exhibition flights in North American and the Orient.

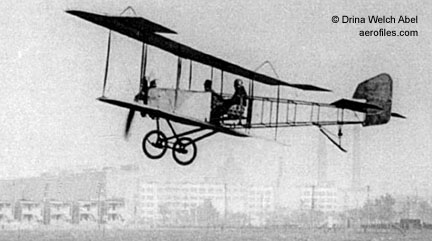

  Partridge-Keller Trainer (Drina Welch Abel coll)

Tractor Trainer 1913 = 2pOB; 80hp Smith radial.

1928 = 1pOhwM; 90hp Curtiss OX-5. A first-effort, looking like a large Pietenpol (which this design predated by five years), flew well for 15 hours, then was damaged beyond repair when it hit a vagrant pig during a landing.

  Pasped W-1 Prototype [X14919] (Frank Rezich coll)
  Pasped W-1 Prototype [NC14919] (John Diele coll)
  Pasped W-1 Restoration at 2002 AirVenture [NC14919] (Liz Swain / EAA)

W-1 Skylark 1935 (ATC 2-546) = 2pO-ClwM; 125hp Warner Scarab; span: 35'11" length: 25'0" load: 597# v: 139/125/35 range: 475. Fred Pastorius, Stanley Pederson. $4,485; POP: 1 [X/NC14919] c/n 1. Full-panted gear; side-by-side cockpit with optional enclosure. Later approved for 145-165hp Warners. Design continued post-war as Skylark Skycraft.

  Patchen Explorer [N1EX]

Explorer 196? = 2pChwM; 200hp Lycoming; v: 130/115/x. Pylon-mounted engine; shoulder wings. POP: 1 [N1EX]. Registration was assumed by a 1982 Skybolt home-built, so the trail of the Patchen ends there.

The aircraft is still alive and well, operated by the South African Air Force Museum. The prototype was shipped to the Republic of South Africa and evaluated by the SAAF's test flight and development centre for use as a light recon forward air control aircraft, but was not quite what was required. As a result it languished in a hangar for many years before being donated to the SAAF Museum. Why only one prototype was ever built I do not know, as it is a great little aircraft with a fantastic helicopter-type view from the cockpit. I will admit that it does not have the greatest control harmony (sensitive rudder and elevator, heavy ailerons), but it goes well with a 200hp Lycoming and variable-pitch prop. I served with the SAAF Museum during 1999 as a display pilot and flew the Patchen at many airshows. It looks so weird that it attracts far more interest at airshows than many of the vintage aircraft! (— James R Feuilherade 11/15/00)

Flying Boat 1913 = 2pOBF; tractor with twin propellers. Competed in 1913 Great Lakes Reliability tour, but was forced out by high winds. SEE ALSO Andermat.

  Patterson-Francis Twin-Tractor

Twin-Tractor 1913 = 2pOB; Hall-Scott V-8 with two chain-driven props, a developed version of the 1912 Fowler-Gage (SEE Gage). Plane's components were designed and built in San Francisco by Francis, then shipped to Cicero IL for assembly. It crashed on its test flight and disappeared soon afterwards, either stolen or vandalized.

1907 = OH; four 3hp motorcycle engines. Empty wt: 500#. Two rotors in tandem and a tractor propeller. The helicopter was tested in a large barn, where it was reported to have reached a height of about 4 feet.

  Paulic XT3-B [NX21726] (William T Larkins)

XT3-B, T-3B-1 1939 = 2pClwM; 125hp Warner Scarab; span: 33'0" length: 23'6" load: 1060# v: 144/122/58. John Thorp, Rudy Paulic. Side-by-side trainer planned for Boeing School of Aeronautics in Oakland, where both Paulic and Thorp worked [NX21726]. Dismantled after several test flights and stored until 1959, when it was redesigned and rebuilt by Paulic as 4p retractable-gear T-3B-1 with 190hp Lycoming O-435 and reregistered [NX6497C].

T-4 - Design study, never built.

T-5 SEE Thorp.

Aeronef aka Gold Bug 1910 = 1pOB. No other data.

Built on the box-kite principle, with the forward box used for changing the angle of flight, while the rear box was adjusted for the direction of flight. Made its public appearance at the June 1910 Indianapolis Air Meet, but did it fly? No info as yet. (— Jerry Marlette 07/17/99)

Knight Twister SEE separate listing under K entries.

MC-7 Pusher 1935 = 2pOlwM; 40hp Continental A-40 or 47hp Franklin pusher; span: 33'6" v: x/82/x. Twin-boom, twin-tail experiment by the designer of Knight Twister. Side-by-side cockpit; pod-mounted motor. [NX18238].

PL-1 Laminar 1962 = 2pClwM; 95hp Continental C90-12F; span: 28'0" length: 18'11" load: 525# v: 120/115/53 range: 600 ceiling: 18,000'. Some 5,000 design hours went into this ambitious project, intended for home-builders. Full plans were sold for $75, and in the end 375 sets had been sold. One of them went to Taiwan AF, where 58 were subsequently built as PL-1B basic trainers with 150hp Lycoming O-320 engines.

PL-2 1969 = 2pClwM; 108-150hp Lycoming O-320; span: 28'0" length: 19'4" load: 545# v: 144/132/52 range: 485 (data for 125hp version). Externally almost identical to PL-1, the internal structure was extensively changed to simplify construction and reduce weight. POP: unknown, but 276 sets of plans had been sold by early 1975. 50 similar LT-200 were built in Indonesia.

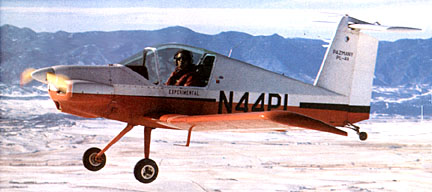

  Pazmany PL-4A [N44PL] (EAA archives]

PL-4A 1972 = 1pClwM; 50hp Volkswagen 1600cc; span: 26'8" length: 16'6" (?>16'2") load: 270# v: 125/98/46 range: 340. POP: 500 sets of home-builder plans sold by 1976. Kits were available from commercial sources.

  Pearson-Williams PW-1 [NX94Y]

PW-1 1938 = 1pCmwM; 825hp Curtiss Conqueror V-12; span: 24'0" length: 26'0". Rod Nimmo. Racer for the Nationals Mr Smoothie (p: Lee Williams) [NX94Y]. Originally had retracting gear that was wired down after its mechanism was damaged in shipment to Cleveland by railroad boxcar.

1910 = Using principles earned from studying maple tree seedcases using their two rotating wings, Peay built a working model of a plane with rotating blades, somewhat like an autogiro, that permitted steep descents and slow, short landings, then applied for a patent for his invention. Reportedly, some men appeared at the Peay residence to discuss his findings, claiming that they were government representatives from WDC. Peay let them take his model with them for study, and never heard from them again. Attempts to find out what had happened to his model proved fruitless, and Peay abandoned further aviation research.

  Peck Columbian 1912 (postcard)

Columbian or Columbia Bi-plane 1911 = 1pOB; 50hp Gyro rotary pusher; span 30'0", of which the 4' outboard panels were flexible for wing-warping lateral control. Pod fuselage reported, but is not apparent in the postcard photo, and those "outboard panels" could be interpreted as "ailerons." Gordon Bennett Cup entry did not compete. Text on postcard: "Aviator Col. Paul Peck in Columbian Bi-Plane just landing after an 8000 foot flight. First machine to carry U. S. Mail officially." (The postcard upgrades Peck in rank slightly)

In American Air Mail Catalogue, Vol 1, 6th Edition, Entry 3: Sep 23-Oct 1, 1911, Garden City-Mineola, NY, International Aviation Tournament. The first official US airmail was flown during the (event) at the Aerodrome on Nassau Boulevard in Garden City. Postmaster General Frank H Hitchcock authorized mail to be flown and Earle L Ovington was sworn in as the first official airmail pilot. T O M Sopwith and Capt Paul W Peck also flew mail during the meet. Ovington flew mail on the first day, and most covers and cards received a circular "Aeroplane Station #1" postmark and a 3-word ("Aerial Special Despatch") cachet. Covers were postmarked during each day of the meet, but no mail was flown on Sep 29 or Oct 1 due to poor weather conditions. A total of 43,247 pieces of mail was serviced during the meet.
    [ibid.] Entry 41: July 19-21, 1912, Coney Island [an amusement park clone in Cincinnati; note roller coaster in background on postcard], Ohio. Paul Beck [spelling error] flew mail each of three days from Coney Island to California, Ohio [the town's Post Office existed 1865-1935 on the outskirts of Cincinnati, about 1.5 miles from the park]. A Columbia biplane was used and the service was designated as Route 631,003. (— Eric Blocher 4/26/02)

  de Havilland DH-4M2A [C3360] (Don Parsons)

de Havilland DH-4M2A 2006 = Atlantic-Fokker DH-4 is the result of three years' work by Peck and crew, including a complete rebuild of a Ford-Liberty 12, and is most likely the only one in the world flying—it last flew for film Spirit of St Louis. Finished for owner Al Stix in Robertson Airlines colors as CAM 2 mailplane; ff: 9/29/06 (p: Peck). [C3360].

  Zenith Z-6A [NC392V] (Don Parsons)

Zenith Z-6A = One of only five built, and the last one remaining, this 1929 rarity was revived from a derelict cropduster [NC392V].

Additionally 7 other planes known to have been rebuilt and restored were Aeronca K, Boeing 40B, Curtiss JN-4C, Curtiss Robin, Piper J-3 Cub, Piper Vagabond, and a Porterfield, which was the start of them all.

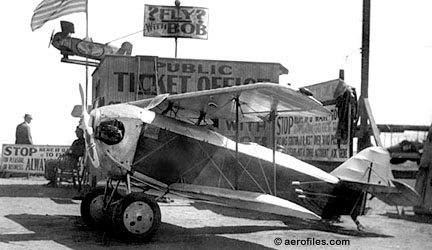

  Peed (Drina Welch Abel coll)

192? = 1pOB. Data still needed.

Peed was a graduate of the Army Flying School at Kelly Field (TX), later stunt pilot for movies in "Lilac Time" and "Hell's Angels." Also a test pilot for Alexander Co on the Bullet. (— John M Jarratt 10/10/02)

This was evidently designed and probably flown by my father, who was an aeronautical engineer. I do not know where he was in the 1920s. I was born in 1930, and my family moved to California when I was about six years old. During my childhood I remember Clover Field well, for both my parents flew out of it, as well as the old Mines Field (now LAX). I will search family files to see if I can come up with a match for this plane. (— Garland Peed III 2/18/03)

According to the Jan 11, 1913, edition of the Highland Democrat, in a review of local events for the year 1912: "A new company incorporated here, of which more may be heard later, is the Peekskill Hydro-Aeroplane Company, which was incorporated in July." There is no mention of the company in the 1913 yearly review. I also checked city directories listing people and companies in Peekskill and surrounding municipalities for 1912, 1913, and 1914, and found no reference to either Hydro-Aeroplane Co or Peekskill Hydro-Aeroplane Co. Many other companies were listed, including two that might have been associated with an attempt to build an airplane. The research librarian could not find any other references within the library on this company or topic. (— Ian MacFarlane 9/18/00)

1931 = 2pOhwM; 60hp LeBlond. [11145] c/n 1A1, crashed and reg cancelled 10/18/32.

Flying Machines 1836 and 1877 = Somewhat before our time span, but two Penningtons deserve mention as pioneer visionaries conducting experiments with powered flight long before before the Wright brothers and Count von Zeppelin.

WRK SEE Wilford.

XOZ 1934 = 2pOlwAgF; 110hp Warner Scarab, later 125hp Kinner B-5 and 155hp R-5; four-blade rotor: 32'0" v: 107/90/0 range: 150. E B Wilford. A rare autogyro floatplane built from Consolidated (Fleet) XN2Y-2 parts. POP: 1 as XOZ-1 [8602].

1930 = 4pFb; four 575hp P&W Hornet; span: 80'0". Walter Eade. All-metal.

1994 = Continuation of Bede BD-10 with GE J85 as a home-builder kit. A crash in testing killed the president of the company. Acquired by Fox Aircraft of Minden, but its president, too, was killed in a crash. In 1996 Monitor Jet Corp of Canada took over but, despite claim of 12 standing orders, no production was forthcoming. Next? SEE Vortex.

  Pereira GP-4 (Osprey)

GP-4 19?? = 2pClwM rg; Lycoming IO-360-A1A; span: 24'8" length: 21'6" load: 739# v: 240/x/65 range: 1100-1250. Wood construction; manual gear retraction. Marketed plans and kits to home-builders.

  Osprey II (Osprey)

Osprey II 1974 = 2pCmwMAm; 150hp Lycoming O-320 pusher; span: 26'0" length: 21'0" load: 590# v: 140/130/63. Wood construction; manually retracting tricycle gear. Marketed plans and kits to home-builders. Mechanics Illustrated design award. POP: 500+ reported built and flying by c.2000.

X-28A Osprey I 1970 = 1pCmwMFb; pusher; ff: 8/12/70 (p: George Pereira). Experimental seaplane based on Osprey plans, for USN evaluation. POP: 1 [N3337=158786]. Donated to USMC museum 1972.

1923 = 2pOH; 110hp LeRhone; rotors: 47'0" load: 1020#. Rotor blade chord: 4'0". Coaxial counter-rotating rotors, collective pitch control. A novel approach to power-off descent was used—with a hand crank, the rotors could be moved to a position perpendicular to the direction of flight, transforming the helicopter into a sort-of biplane. A horizontal tail surface mounted on a boom was then used as elevator. A prototype was built by Plamondon Mfg Co of Chicago and flight-tested at Lombard IL. Results were not publicized but apparently were unsatisfactory.

P-1 1929 = 5pMAm; one or two 85hp Packard. Although registered as [444] on 1/16/29, specs from Perry's application sound implausible: "... 14' long with 12' wingspan and one or two Packard engines, to accommodate a pilot and four passengers." What? No hot tub? CAA inquiries went unanswered and reg was cancelled 5/5/30. Probably never built or completed, certainly never flown with all seats occupied.

  Peters Play Plane [X10682]

Play Plane aka NABA Sportster 1932 (?>1936) = 1pOhwM; 28hp Lawrance. Aimed at the lightplane home-builder market. Parasol wing, short-coupled tricycle gear. $987, $1,185 for proposed 2p version; POP: 2 [X10682, X15511], unknown if any were built by others. Had 40hp Continental by 1938.

Skyline Super-V 1957 = Twin conversion of Beechcraft Bonanza. 1pClwM; two 170hp Lycoming O-340; load: 1500# v: 230/200/43 range: 1300 ceiling: 11,000'. [N2811V].

Hi-Hopes 1960 = 1pOlwM; span: 20'0" length: 17'0" load: 350# v: 135/120/80 range: 360. [N5960V].

1932 = 2pOhwM; 100hp Kinner K-5. [X12273] c/n 1. Researched by John M Jarratt, who found in letters to CAA that owner Campbell had, on 1/2/33, requested its Experimental license be cancelled as being "not fit to be flown." Peterson later wrote CAA that he had no idea why the reg was cancelled. The two entered into a lawsuit, with the plane finally being sold 5/14/35 to a R L McCreery (no price stated) with conditions that it would never again be sold, would never have a stress analysis or plans made, would never be licensed, and the wing and fuselage would be destroyed and junked. McCleery notified CAA on 11/7/35 that it had, indeed, been salvaged. He had ostensibly bought only an engine—a most curious transaction! CAA canceled reg on 11/7/35.

    Crashed on altitude record attempt, Peterson killed. (— John W Underwood 10/17/07)

  Petit Special [N5715N] (Martin Frauenheim coll)
  Petit Special [N5715N] Details unknown

Special 1948 = 1pCmwM; 85hp Continental pusher C-85 pusher. All-metal; tail-mounted propeller. Midget racer [N5715N]; never competed.

  Pfeifer JL Sport [N63J] (Lee Enich via EAA)

JL Sport aka Special 1956 = 2pOB; 190hp Lycoming O-435-C1; span: 28'0" length: 19'6" load: 730# v: 138/125/65. Rebuilt from a Fleet 2 [N63J].

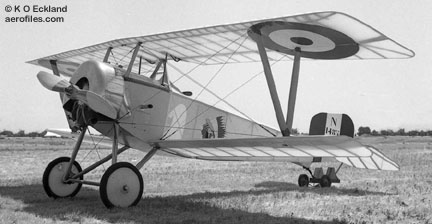

  Nieuport 11 (K O Eckland)
  Sopwith Snipe (K O Eckland)

Nieuport 11 and others = Pfeifer was noted for several exquisite flying replica WW1 aircraft, sportplanes, and his many restorations through the '50s and '60s.

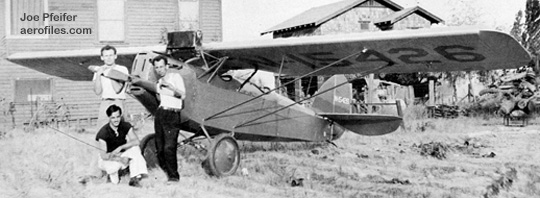

  Pfeifer Sport [N15426] (Joe Pfeifer coll)

Sport 1936 = 2pOhwM; various motors from 50hp Ford B to 90hp Warner; ff: 5/6/36. [N15426] c/n J-4; crashed at Santa Susana CA 8/9/41 (p: John Toborg) and reg cancelled. Originally a reworked Pietenpol, a version of this plane was built by Pfeifer in 1975 with 110hp Corvair auto engine and higher parasol wing (span: 30'5").

  Pfitzner c.1915 postcard (Roy Nagl coll)

Monoplane 1910 = 1pOmwM; 25hp Curtiss pusher; span: 36'0" length: 30'0" load: 230# v: 42. Lt Alexander Pfitzner. Lateral control with sliding wing panels which increased lift on either side to cause turning action; quad landing gear.

1928 = 3pOB; 90hp Curtiss OX-5. [X7927] c/n 1.

A-150 1929 = 3pOB; Hisso; v: 105/90/30 range: 620. Gross wt: 2450#. [12922] c/n 2.

  Pheasant H-10 [NC5609] (Frank Rezich coll)

H-10 1927 (ATC 36) = 3pOB; 90hp Curtiss OX-5; span: 32'4" (?>31'0") length: 23'6" load: 785# v: 100/85/35 range: 450-500. Lee Briggs, Orville Hickman. $2,375-2,650; POP: 11. Operations were sold and moved north in 1928 after Briggs was killed in a flying accident. For an interesting sidelight, SEE Manorplane.

Traveler 1928 = 1pChwM; 55hp modified Ford A; span: 31'0" length: 23'6" v: 100/85/35. Cantilever gull-wing. POP: 3; prototype [X174N].

  Phillips Alouette (clip from unknown magazine)

Alouette aka "The Fly" 1924 = 1pOB; 45hp Lawrance and 60hp Anzani; span: 18'0" v: 115 range: 500. Home-built by Phillips and members of the Air Service at Kelly Field TX.

1930 = 1pOM; 18hp Hendee. No other data found. [932V].

P-2 1936 = 1pOB; 45hp Szekely. [15775] c/n BB-1.

Play Boy 1932 = Unknown type with a 40hp Shebach (Maybach?) engine. [12862] c/n PS-2. Reg assigned 7/1/32, but when Phillips reported "not completed for financial reasons," it was cancelled 8/31/34.

  Phillips Aeroneer [NC16075] (K O Eckland coll)

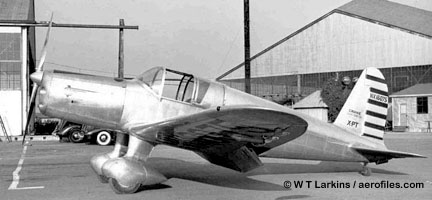

  Phillips Aeroneer [NX16075] posing as "Crane XPT" for a bit part in 1940 film, "House Across the Bay" (William T Larkins)

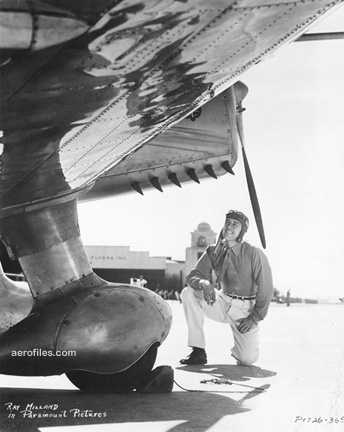

  Phillips Aeroneer Actor Ray Milland spots it in a Burbank hangar during filming of "Men With Wings"

1-B Aeroneer, XPT 1936 (ATC 693) = 2pClwM; 125hp Menasco C-4; span: 32'6" (?>36'2") length: 24'0" load: 695# v: 140/130/49 range: 600. POP: 1 [NC16075]. Rebuilt 1939 with 145hp Ranger 6 (length: 23'6" load: 810# v: 150/130/46 range: 500) as XPT (Experimental Primary Trainer) in an attempt to get an USAAC contract [NX16075]. This failed, then MGM Studios reportedly bought it, as it has appeared in several films. Said to be presently (2005) stored in a hangar in Arizona. FAA says registered owner is, or was, in Oklahoma City but "sale reported" (2007).

  Philips CT-1 Perú [OB-AAN] (Sergio de la Puenta coll)

CT-1 Skylark 1940 (ATC 731) = 2pO/CB; 95hp Menasco B-4; span: 28'3" length: 23'2" load: 586# v: 114/100/45 range: 340. Ivan Driggs. Optional 125hp C-4 and sliding cockpit canopy. Continuation of Driggs Skylark. POP: 2 or 3 [prototype NX18989 c/n 100]; 1 to Peru.

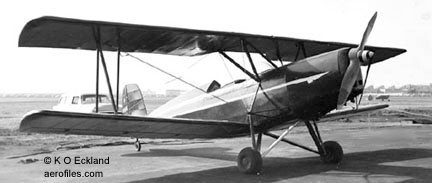

  Phillips CT-2 [19989] (K O Eckland coll)

CT-2 Skylark 1941 = 2pO/CB; 120hp Phillips-Martin D-333; span: 28'3" length: 23'3" load: 570# v: 124/115/45 range: 315. Optional sliding cockpit canopy. $2,500; POP: probably 1 [19989] c/n 101. Subsequent production after acquisition by Ayers is unknown.

XPT-1 SEE 1-B.

  Phillips-Fleet 7 [NC637M] (K O Eckland coll)

-Fleet 1942 (ATC 2-562) = Fleet 7 with 120hp Phillips-Martin 333. POP: 2 [NC64VA, NC637M].

Arrow B-7 1926 = 3pOB; 90hp Curtiss OX-5; span; 35'0" length: 23'0". Built for Phinn by R H Bloxham. Flew once, then was dismantled for unreported reasons.

H-2 1927 = The nonesuch "Hess H-5" Bluebird trainer [1878] c/n 36, bought by Klaus and reregistered in Phoenix's name; also seen as Phoenix-Milwaukee H-2.

16H Pathfinder = 5pClw hybrid aircraft. One main rotor on top; a ducted pusher prop in the tail with vertical vanes, deflecting the slipstream to counter torque.

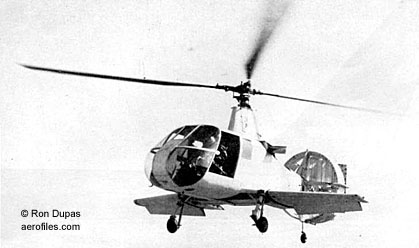

  Piasecki 16H-1 [N616H] (Ron Dupas coll)

16H-1 1962 = 550hp P&W-Canada PT6B-2 free turbine; rotor: 41'0" length: 25'0" load: 3089# v: 178/172/0 range: 610 ceiling: 11,500' (hover 6,200'); ff: 2/21/62.

  Piasecki 16H-1A (Piasecki via Jos Heyman)

16H-1A 1965 = Joint Army-Navy research project, a modification of [N616H]. 1200hp General Electric T-58; rotor: 44'0", length: 37'3" v: 225/x/0.

16H-1C 19?? - 1500hp General Electric T-58-5; rotor: 44'8" load: 3375# v (est): 207/188/0 range (est): 450. Info found in Aviation, but this model was not mentioned in a factory brochure so might have been a speculative project.

  Piasecki 16H-3J 3-view (Piasecki via Jos Heyman)

16H-3 1965 - Vectored Thrust Ducted Propeller (VTDP) compound helicopter proposal.

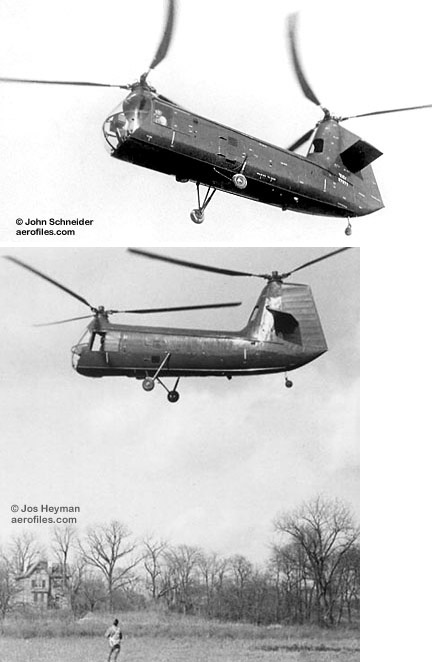

  Piasecki XH-16

  Piasecki H-16

H-16A, -16B, XH-27 1955 = 49p with two 1800hp Allison YT38-A-10 turboshafts; load: 20,250# range: 216 ceiling: 15,600'. Repowered with 2100hp Allison T56-A-5 as YH-16B, conversion by Vertol Corp. POP: 1 [50-1270]. The designation H-16A was reserved for a production version.

  Piasecki YH-21 (Piasecki via Jos Heyman)

YH-21, PD-22 1952 = 14 fully-equipped troops. 1150hp Wright R-1820-103; rotors: 44'6" length: 86'4" v: 131/110/0 ceiling: 15,000'; ff: 4/11/52.

H-21A 195? = USAF Medevac for 12 litter patients. 1150hp Wright R-1820-103. POP: 38 to Arctic SAR units.

H-21B 1959 = USAF. 1425hp Wright R-1820-107. 20 troops or 12 litters. POP: 163.

H-21C Shawnee 1957 = Army cargo and personnel. External 4000# swinging-boom hoist. POP: 334. Set a closed-course distance record of 1,199 miles in Aug 1957 with extra fuel tanks, and a nonstop flight the same month from San Diego to Washington DC with aerial refueling.

H-21D 19?? = Experimental H-21C with two GE T58 turboshafts. POP: 1.

  Piasecki H-25A

H-27 - Interim designation for YH-16A.

  Piasecki XHJP-1 Factory prototype (Piasecki via John Schneider)

HJP, PV-14 1948 = USN. 5pCH; 550hp Continental R-975-34; rotor: 35'0" length: 31'10" v: 120/x/0. Tandem overlapping rotors. POP: 2 to USN as XHJP-1 [37976/37977]. Into production as HUP.

HRP SEE PV-3.

HUP, PV-18, UH Retriever 195? = USN tandem-rotor carrier-based utility. 5pCH; 550hp Continental R-975-34. Production version of HJP. POP: 27 (?>32) to USN as HUP-1 [124588/124594, 124915/124929, 126706/126715].

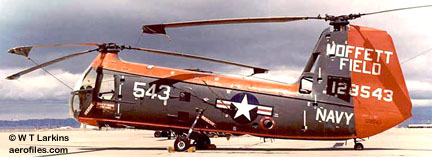

  Piasecki HUP-2 [128543] (William T Larkins)

HUP-2, -2S 19?? = 550hp Continental R-975-42; rotor: 35'0" length: 56'11" v: 105/x/0 range: 340. Autopilot. POP: 339 [128479/128600, 129418/129522, 129978/130085, 134434/134437], of which some with radar as HUP-2S for anti-sub warfare. Redesignated as UH-25B in 1962.

HUP-3 19?? = Medevac and light cargo. Reinforced deck and improved hydraulics system. POP: 50 [147582/147630, 149088], redesignated as UH-25C in 1962. The last one was former Army H-25A [51-16641].

HUP-4 195? = HUP-2S with Wright R-1820. POP: 1 [129978].

  Piasecki PA-4 (Piasecki via Jos Heyman)

PA-4 Sea Bat 1958 - Unmanned helicopter designed for the USN as a weapons delivery system. Lycoming VO-435 driving four 12' rotors; length: 26'6"; ff (tethered): 10/25/58. Ultimately lost in an accident.

  Piasecki PA-39 Concept (Piasecki via Jos Heyman)

PA-39 - This model designation covered a number of studies in the 1970s and 80s which sought to combine two or four helicopters (Sikorsky CH-53s or -54s) with a metal airframe as an extreme heavy-lift vehicle (c.60 tons) for the Army. The projected Multiple Helicopter Heavy Lift System (MHHLS) did not result in any flying vehicles.

PA-59 SEE VZ-8P.

  Piasecki PA-97 (Piasecki via Jos Heyman)

PA-97 Helistat 1980 = USN contract for the Forest Service to demonstrate economic and ecological potential of heavy vertical airlifters in harvesting timber and other natural resources in difficult terrain. The demonstration vehicle utilized a Navy ZPG-2W blimp and four H-34J helicopters. Length: 343'0".

PD-22 = USN version of YH-21.

  Piasecki PV-1 Concept art (Piasecki via Jos Heyman)

PV-1 1940 - Frank Piasecki and his P-V Forum's first design was to be a single-rotor helicopter with a fan-forced, anti-torque system blowing air through the tail cone, and turned by control vanes in the exit, predating the NOTAR* by several decades. PV-1 was not developed beyond the design stage due to high development risk at the early stage of helicopter design. *Acronym for "No Tail Rotor" technology whereby the tail rotor was replaced as anti-torque control by a swiveling exhaust duct at the end of a hollow tail boom.

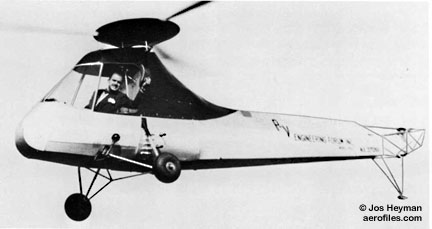

  Piasecki PV-2 (Piasecki via Jos Heyman)

PV-2 1943 = 1pOH; 90hp Franklin; rotor: 25'0" v: 90/65/0; ff: 4/11/43—the second US helicopter to be flown publicly. Elliot Daland.

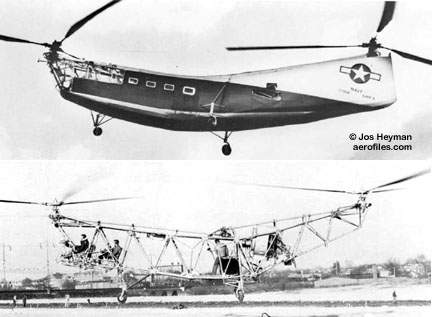

  Piasecki XHRP-X and XHRP-1 (Piasecki via Jos Heyman)
  Piasecki HRP-1 (Jos Heyman coll)
  Piasecki HRP-1 Cabin ointerior (USCG)

PV-3, HRP 1945 = 12pCH; 600hp P&W R-1340 mounted in the tail; rotors: 41'0" length: 48'0"; ff (prototype XHRP-X with Continental R-975) 3/7/45, (HRP-1): 8/15/47 (?>11/3/45). "Flying banana" design with fore and aft rotors, the first of its kind, initially flew as a bare metal frame and was covered later. POP: 2 as XHRP-1 [prototypes 37968/37969], the latter rejected by USN, and 20 as HRP-1 [111809/111828, 111834/111848]. Redesignated as PV-3. Produced by Boeing-Vertol in 1948 as upgraded, metal-clad HRP-2; length: 54'9"; ff: 3/6/46. POP: 5 [111829/111833].

PV-14 SEE HJP.

PV-15 aka XR-16 1946 = Protoype for H-16.

R-16 SEE H-16.

UH-25 SEE H-25, HUP.

VZ-8, PA-59 - 1pO "flying Jeep" with 7'6" ducted horizontal tandem rotors.

  Piasecki PA-59K and -59N [58-5510] (Piasecki via Jos Heyman)

VZ-8P Airgeep I 1958 = US Army. Two 180hp Lycoming O-360-A2A; rotors: 7'6" length: 26'1" load: 500# v: 65/50/0 range: 25; ff: 9/22/58. Did not require ground effect and could travel on its three wheels as a ground vehicle. POP: 1 as PA-59K [58-5510], converted in 1961 to PA-59N SeaGeep with two 550hp AiResearch TPE331-6 and fitted with floats for testing by USN and USCG; ff: 11/8/61.

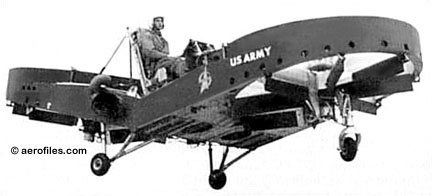

  Piasecki Airgeep II [58-5511]

VZ-8P Airgeep II 1962 = Canted fuselage frame, two 400hp Turbomèca Artouste IIC; rotors: 8'2" length: 24'5" load: 1060# v: 85/70/0 range: 35; ff: 2/15/62. POP: 1 as PA-59H [58-5511].

  Piasecki X-49A

Helicon 1953 = 2pCH. Framework fuselage aft of fabric-covered cabin.

192? = 1pOB with 50hp Gnôme rotary.

1923 = 1pOB with Ford Model T.

  Pietenpol Air Camper [N2421] (K O Eckland coll)

Air Camper 1933 = 2pOhwM; 40hp Ford A; span: 28'2" length: 17'8" load: 395# v: x/60-75/40; ff: 4/20/33. One of the best-known home-builts ever designed, the total population of which can only be imagined; prototype [12937]. One, built in 1934, was still active in Wisconsin in the late '80s, flying with its original fabric!

Sky Scout 1931 = 2pOhwM; 40hp Ford T conversion; span: 27'3" length: 16'3" v: 62/50/35. Slightly smaller version than Air Camper; prototype [10718]. Popular home-builder project.

  Pigeon Scout Despite Army insignia, USAS rejected the design (Leo J Opdyke / Skyways)
  Albree Scout (Drina Welch Abel coll)
  Pigeon with 50hp Gnôme. Caption claimed: "... constructed by Roscoe P Timson and flown at Nahant Beach twice in 1916 by Clifford Webster of Lowell, a test pilot for Burgess Airplane Co..." then: "In another [italics ours] Burgess Wright craft ... Harry Atwood (made a record flight, etc)," hinting there might have been Burgess involvement. Needs ironing out. (Lynn (MA) Historical Society coll)

9, Scout aka Albree Scout 1917 = 1pOmwM; 100hp Gnôme rotary (also one Novus rotary); span: 37'11" length: 24'0". George Norman Albree (indicated as the purchaser, but was also working at Pigeon Co); aka Timson-Albree and Pigeon-Fraser—different names for very similar designs.Data are sketchy and unsubstantive. POP: 4, of which 3 for US Army, but were not accepted after testing at McCook Field—one reportedly was a static test model, one crashed and burned in a test flight, one was put in storage by Pigeon Co, and info on the fourth is imprecise, but it could be Albree's plane. One was located and restored by Cole Palen at Old Rhinebeck NY. Photos verify the existence of four aircraft, with two of them identified as c/n 9 and s/n 117.

Flying Boat aka (Reginald) Thomas-Pigeon 1919 = 1p flying boat, the fuselage of which was located and purchased by Cole Palen, and reported in 1994 at "Yanks Air Museum in Chino." No other data found.

  Pilgrim 100-A (American Airlines)

100, 100-A aka American Pilgrim 1931 (ATC 443, 2-365) = 10pChwM; 575hp P&W Hornet B; span: 57'0" length: 38'1" load: 3388# v: 136/118/65 range: 400-500. Virginius Clark. Essentially a Fairchild product, descended from Fairchild 100. $28,750; POP: 16, all to American Airways.

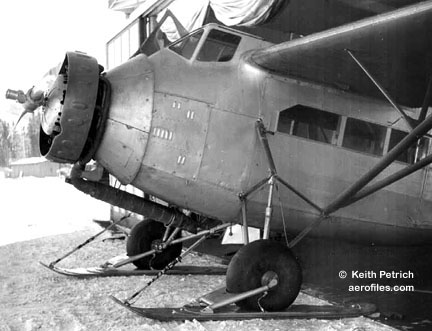

  Pilgrim 100-B on skis (Keith Petrich coll)

100-B 1932 (ATC 470) = 10pChwM; 575hp Wright R-1820 Cyclone B; span: 57'0" length: 39'2" load: 3313# v: 135/118/65 range: 510. POP: 10, of which 6 to American Airways, and 4 to Army as Y1C-24.

  Pilgrim Y1C-24 [29-411] (Gene Palmer coll)

C-24 SEE 100-B.

FC-2 c.1936 = 2pChwM; 220hp Wright. [NR6692].

KR-34 1931 (ATC 2-372) = 3pOB; 120hp General-Moore. Modified Fairchild KR-34. POP: 1.

  Pilgrim KR-135 [NC248V]

KR-135 1931 (ATC 415) = 2pOB; 125hp Fairchild (Ranger) 6-390; span: 27'0" length: 21'6" load: 590# v: 116/93/51 range: 380. Based on Kreider-Reisner 21 series. POP: 3 [NC248V, X311H, NC963V], the second used as a test bed for Fairchild's 100hp experimental Ranger 6-375.

BS-2 1929 = 1pOB; 96hp Siemens-Halske; span: 20'0" length: 18'0". POP: 1 school project [446] c/n 2 (II), "used for advertising." License cancelled 2/20/30.

c.1933 = 3pOBAm; 210hp Kinner. All-stainless-steel version of Savoia Marchetti S-56. POP: 1, exported to Italy [X749N].

PAT-1 Pugmobile 1981 = 4pClwM canard; 160hp Lycoming O-320; load: 1000#. Approach speed: 75. George Mead. Prototype [N15PT] crashed on 11/19/81, killing designer Mead and two passengers.

1964 = 1pOAg; 72hp McCulloch; rotor: 20'0" load: 225# v: 85/60/10 range 120. [N9195Z].

Yellow Jacket 1953 = 1pOlwM; 85hp Continental C-85; span: 14'0" length: 19'0" v: 150/130/60. Fuselage framed with tubing from a surplus PT-23 and a Porterfield, wings from 1948 Anderson Special; ff: 8/8/53. POP: 1.

  Pitts Sky Car film clips. Didn't fly but it sure cleared the area of debris.

Sky Car 1928 = 1pOH; 90hp Curtiss OX-5. The best thing that could be said about this machine is that it was a nice try. It appears to be the first helicopter with vibration designed into it (US patent #1,602,778). Each blade of the 60-blade rotor had a full-radius vane attached to it that was free to flap about its radial hinge. Rotation caused the drooping vanes to swing out, closing the space between blades and forming a solid rotor disk, the point being that the rotor was forced by the engine to reciprocate up and down. When the rotor went up the vanes were flung open, allowing the air to pass between the blades; when it then moved downwards, the vanes closed and a good portion of air was thrown downwards, thus supposedly creating a lifting force. Motion pictures recorded a flight attempt in which it is seen pathetically jumping up and down like an irate washing machine, but it is dubious if this was caused by downwash—after all, when one heavy part of a machine is forced down some other part must go up, according to the laws of mechanics.

  Pitts 12 [N133GT] (Dan Shumaker)

12, 12HP Macho Stinker 1996 = 2p aerobatic biplane that Pitts designed for the 360hp or 400hp Vendeneyev M-14P radial; span: (upper) 23'0" (lower) 22'0" length: 20'6" load: 700# v: 235/175/64 range: 520. Marketed by Jim Kimball Enterprises in Zellwood FL in kit and component form. The Kimballs made their own modifications to Model 12, which was known as the HP performance version (span (upper) 22'0" (lower) 21'0" length: 19'8" load: 775#), also announced a single-wing derivative of the design.

13 - High-wing coupe-type that never went beyond the concept stage.

14 2002 = Aerobatic 2pOB design from Pitts was in construction at Steen Aero Lab. 400hp Vendenyev M14; span: (upper) 21'6" (lower) 20'6" empty wt (est): 1500# gross wt (est): 2250# v (est): 190/180/57). Curtis Pitts, at age 90, was actively involved in its construction.

Pellet 1948 = 1pClwM; 85hp Continental C-85; span: 17'7". Originally had a spring-steel gear which was replaced by an oleo gear from a Waco F. Midget racer [NX52120] (p: Bob Heisel, Phil Quigley); destroyed in the 1949 San Diego race. Replica built in 1985.

S1 - The S-1 series began with the Pitts Special that did more than any other single aircraft to revolutionize the field of competitive aerobatics in the world. There was no S1-A or -B, and all S1s were single-seat biplanes.

S1 Special 1945 = 1pOB; 55hp Lycoming; span: 20'0" length: 18'3". Curtis Pitts; ff: 9/x/44. First of a popular line of home-builts actually began in 1942, but WW2 put operations on hold. Repowered with 90hp Franklin and sold to a cropduster, who reportedly was so hard of hearing that one time he didn't hear the motor quit and crashed—no injury, but the plane was a wash-out. A second Special, with 85hp Continental C-85, went to aerobat Betty Skelton in 1947 as Li'l Stinker [NX86401=N22E] (still active in 1975, displayed at NASM 2001). Subsequent models were used by the US Aerobatic Team to capture international championships from 1969-72, and the line continued with 2p versions and motors up to 200hp.

  Christen-Pitts S1-C [N3507] (Mike Whaley coll)

S1-C aka Flatwing 1960 = Semi-symmetrical airfoil and lower-wing ailerons; Continental O-200. The first S1-C was Pat Ledford's [N8L] and the plans were drawn up as it was constructed. They were redrawn in the '90s by Steen Aero Lab, incorporating many minor changes, the largest of which was the inclusion of the slightly-longer S1-S fuselage.

S1-D 19?? = S1-C with added upper-wing ailerons; 180hp Lycoming IO-360B; span: 17'5" length: 15'6" load: 425# v: 145/135/64 range: 230 ceiling: 22,000'. Kits and plans marketed to home-builders.

S1-E 19?? = An experimental, home-built version of S1-S, with some crossover in names and parts provided by the factory between the -S and -E—an unknown number of S1-E became certified S1-S. POP: about 100 kits sold.

  Christen-Pitts S1-S [N55BT] (Budd Davidson via Mike Whaley coll)

S1-S aka Roundwing 1973 (Afton) = S1-D with two different symmetrical airfoils on the upper and lower wings with four ailerons. S1-S production continued until 1981, when its plans were released for home-builders. Any home-built S1-S predating 1981 was not a true S1-Ss.

  Christen-Pitts S1-SS [N519DC] (Mike Whaley coll)

S1-SS aka Super Stinker Pitts Special 19?? = Used an airfoil and aileron setup derived from the S-1-11/-11B "Super Stinker" aircraft, which was not a Pitts Special nor was it an S1, but a new design meant for world championship aerobatic competition. S1-SS was offered by Steen Aero Lab since the '90s as supplemental wing plans to fit onto any S1 fuselage.

  Christen-Pitts S1-T (Mike Whaley coll)

S1-T 1981 (Afton) = A certified version that superseded the S1-S; 200hp engine, constant-speed prop, new aileron design.

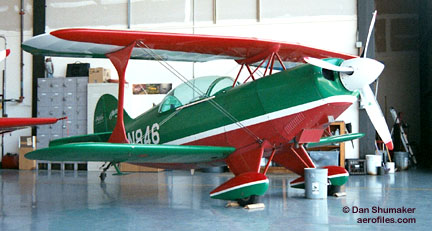

  Pitts S-2A [N846] (Dan Shumaker)

S2-A 19?? = Aerobatic 2pOB; 200hp Lycoming IO-360A; span: 20'0" length: 17'9" load: 540# v: 155/139/62 range: 195 ceiling: 22,000'.

  Christen-Pitts S2-B [N60770] (Mike Whaley coll)

S2-B 19?? = No data found.

S2-C 19?? = No data found.

S2-E 19?? = No data found.

  Pitts S2-S [N99MF] (Mike Whaley coll)

S2-S 19?? = Not a Pitts product, but a 1p experimental home-built rarity.

  Pitts Samson

  Pitts Special [N97M] (Mike Whaley coll)

Special 1947 = 1pCmwM; 85hp Continental C-85. POP: 2 midget racers, [N97M] Miss Dayton and [N1961M] Li'l Monster.

Curtis Pitts told me that he had built "several" of the Goodyear-type racer. I believe that there were 7 or 8 of them built before he got away from racing. (— 2/11/05 Mike Whaley, Steen Aero Lab)
